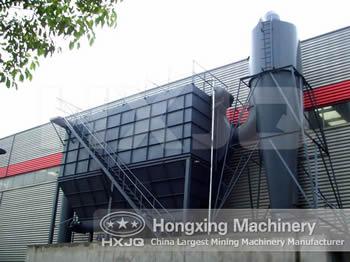

Dust Collector


Dust collector has been widely used in new dry process cement production line, drying mill and cement mill system.
Get Quote Get More Help
Features:
    • Simple structure and long service life
    • Small blowing rate and small differential pressure loss
    • The fineness of finished product can be controlled by adjusting the wind speed, which is easy to adjust.



Features

Dust collector has been widely used in new dry process cement production line, drying mill and cement mill system. It can be divided into three categories: separation classifier, centrifugal classifier and cyclone classifier.

Introduction To Three Separation Classifiers

Three kinds of separate classifiers break through the conventional closed-circuit grinding system, making materials into coarse powder, medium coarse powder and fine powder; the machine has simple system configuration, reasonable internal structure, significant classifying effect and low cost, thus greatly improving the output of the grinding mill. It is the first choice to improve the product quality of the grinding system after the implementation of new standards for cement.

Centrifugal Classifier

Centrifugal classifier is the first generation air classifier. After transformation, centrifugal separator machine solves the high cycle load problems of previous generation centrifugal separator machine, which not only improves the mill output and reduces the production costs, but also improves the quality of the product.

Cyclone Classifier

Cyclone classifier drives 60 blades to rotate through turntable speed motor and double reduction, forming grading role to powders. The speed of the blade can be adjusted according to the size of the finished powder. To get more fine powders, we must improve the blade speed and increase the contact between the blade and the powder so that the undesirable powders will be thrown to the outer wall and separated from the airflow; the coarse powers fall into the grinding chamber for regrinding under the self-gravity and the qualified finished powders are inhaled into the big cyclone collector; after the separation, the powders will be collected.

Performance Characteristics Of Classifier

(1) The machine is the classification equipment without moving parts; it is reliable and stable and can increase system throughput;

(2) Simple structure and long service life;

(3) Small blowing rate and small differential pressure loss;

(4) Finished product fineness can be controlled by adjusting the wind speed;

(5) It is equipped with drying function.

Parameter

Technical Parameters Of Mixer

Specification Chute inner dimension Effective cubage
(m³)
Mixer Motor Total weight
(kg)
Diameter
(mm)
Depth
(mm)
Diameter
(mm)
Rotate speed
(r/min)
Model Power
(kw)
XB-750 750 750 0.26 240 530 Y90S-4 1.1 550
XB-1000 1000 1000 0.58 240 530 Y90L-4 1.5 700
XB-1200 1200 1200 1.14 400 320 Y100L2-4 3 980
XB-1500 1500 1500 2.2 400 320 Y100L2-4 3 1330
XB-2000 2000 2000 5.46 550 230 Y132M2-6 5.5 2100
XB-2500 2500 2500 11.2 650 200 Y160L-6 11 3438
XB-3000 3000 3000 19.1 700 210 Y225S-8 18.5 5100
XB-3500 3500 3500 30 850 230 Y225M-8 22 7900
