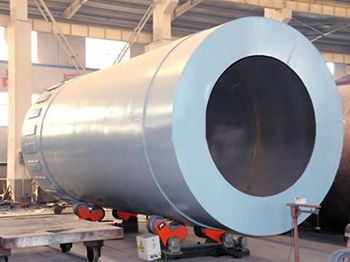

Spray Dryer


The spray dryer is a kind of continuous atmospheric dryer. It makes spray liquid materials into the mist with special equipment and dries it by contacting with hot air.
Get Quote Get More Help
Features:
    • Spherical particles, uniform particle size, good mobility, good solubility, high purity and good quality
    • Wide application and strong adaptability
    • Simple and stable operation, easy and automotive control

Features

Introduction to Spray Dryer

The spray dryer is a kind of continuous atmospheric dryer. It makes spray liquid materials into the mist with special equipment and dries it by contacting with hot air. It is used for drying some heat-sensitive liquids and suspensions and viscous liquids such as milk, eggs, tannin and drugs and also for drying fuel, intermediates, soap powder and inorganic salts.

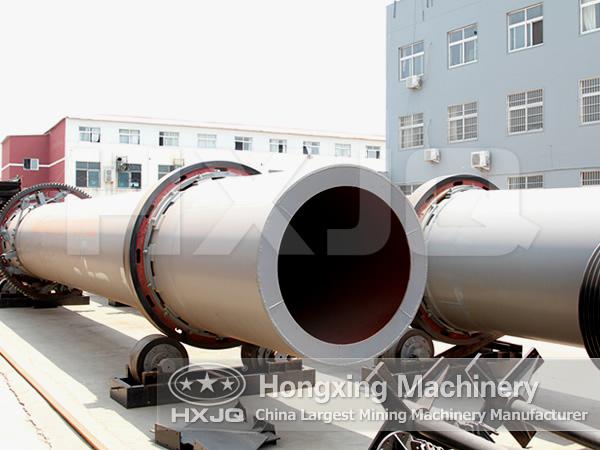

Spray Dryer

Structural Features of Spray Dryer

1. The tower body is equipped with air cooling jacket;

2. The tower body is equipped with automatic beating device;

3. The tower body pipeline is equipped with cleaning hole and sewage hole;

4. The spray dryer is equipped with automatic control thermostat feeding tank;

5. The spray dryer is equipped with handmade high pressure washing tower attachments;

6. The parts contacting with materials are made of stainless steel;

7. The dryer collects materials with two-stage cyclone dust removal device, or one stage cyclone dust extractor and wet scrubber;

8. The dryer achieves automatical control of the air temperature;

9. The dryer is equipped with air sweeping device.

Performance Features of Spray Dryer

1. The drying speed is fast; the surface area of the liquid materials is greatly increased after being automized; it is especially suitable for drying heat-sensitive materials.

2. The finished products are with spherical particles, uniform particle size, good mobility, good solubility, high purity and good quality.

3. The dryer has wide application and strong adaptability.

4. The dryer is featured with simple and stable operation, easy and automotive control.

Working Principle of Spray Dryer

Through filtering and heating, air enters air distributor located on the top of dryer and the hot air evenly and spirally enters the drying chamber. Under the role of high-speed centrifugal atomization on the top of the tower body, the liquid materials spray out very fine mist liquid, which will be dried within very short time after contacting with hot air. Finished products are continuously discharged from the bottom of the drying tower and cyclones, while exhaust gas is drained by the induced draft fan.

Parameter

Technical Parameters of Spray Dryer

Prouduct specifications(m) Production capacity(t/h) Main motor Main gear box Total weight
Power(kw) Model Model speed ratio
Φ1.2×10m 2.5 7.5 Y160M-R3 ZL50-16-I ---- 13.5
Φ1.5×12m 3.3-4.9 10 Y160L-B3 JZQ500-III-2F ---- 18.9
Φ1.5×15m 4-6 18.5 Y200L1-6 JZQ500-III-2F ---- 21
Φ1.8×12m 4-6 18.5 Y160L-6 ZQ50-16II-2 16.46 23
Φ2.2×12m 7-12 18.5 Y200L7-6 JZQ650-III 31.5 38
Φ2.2×14m 7-12 22 Y200L7-6 JZQ650-III 31.5 40
Φ2.2×16m 12 30 Y225M-6 JZQ750-III 31.5 45
Φ2.4×14m 12 30 Y250M-6 JZQ750-III 31.5 51
Φ2.4×18m 10-13 37 Y250M-6 ZL85-13-I 27.16 54
Φ2.4×20m 10-14 37 Y250N-6 ZL8513-I 27.16 55
Φ3×20m 25 55 Y250M-4 ZL100-16-I 41.52 78
Φ3×25m 32-36 75 YR280M-4 ZL100-16-I 41.52 105
