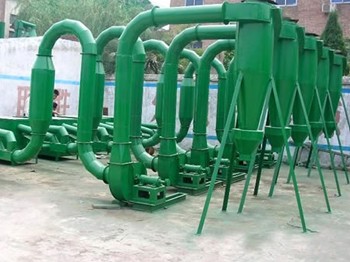

Sawdust Dryer


Sawdust dryer is composed of hot stove, feeding port, rotating cylinder, filter cartridges, material conveying pipe, cooling tube and discharging port.
Get Quote Get More Help

FEATURES

Structure to Sawdust Dryer

Sawdust dryer is composed of  hot stove, feeding port, rotating cylinder, filter cartridges, material conveying pipe, cooling tube and discharging port; the rotating cylinder is located in the active roller which takes low-speed rotation; the feeding port is set between heating furnaces and rotary cylinder and the rotating cylinder is equipped with a fry blade and the baffle has an orifice; one end of the filter cartridge is connected to the rotating cylinder and the other end is connected to the material conveying pipe.

Application Scope of Sawdust Dryer

The airflow sawdust dryer is widely used in straw briquette fuel, charcoal machinery, wood pellet fuel, sawdust briquettes and agricultural engineering industries.

Characteristics of Sawdust Dryer

1. High drying strength

2. Short drying time

3. Simple structure, small footprint, easy operation and maintenance

4. Large handling capacity, high thermal efficiency

Working Principle of Sawdust Dryer

Powdery or granular fly ashes are transferred to feeder by conveyor belt and the feeder transports the materials to drying drum; under the rotation the shovelling plate, materials are uniformly dispersed to be fully contacted with the hot air to reach the drying purpose. Dried materials are discharged in the drum terminal through unloader.

PARAMETER

Technical Parameters of Sawdust Dryer

Prouduct specifications(m) Production capacity(t/h) Main motor Main gear box Total weight
Power(kw) Model Model speed ratio
Φ1.2×10m 2.5 7.5 Y160M-R3 ZL50-16-I ---- 13.5
Φ1.5×12m 3.3-4.9 10 Y160L-B3 JZQ500-III-2F ---- 18.9
Φ1.5×15m 4-6 18.5 Y200L1-6 JZQ500-III-2F ---- 21
Φ1.8×12m 4-6 18.5 Y160L-6 ZQ50-16II-2 16.46 23
Φ2.2×12m 7-12 18.5 Y200L7-6 JZQ650-III 31.5 38
Φ2.2×14m 7-12 22 Y200L7-6 JZQ650-III 31.5 40
Φ2.2×16m 12 30 Y225M-6 JZQ750-III 31.5 45
Φ2.4×14m 12 30 Y250M-6 JZQ750-III 31.5 51
Φ2.4×18m 10-13 37 Y250M-6 ZL85-13-I 27.16 54
Φ2.4×20m 10-14 37 Y250N-6 ZL8513-I 27.16 55
Φ3×20m 25 55 Y250M-4 ZL100-16-I 41.52 78
Φ3×25m 32-36 75 YR280M-4 ZL100-16-I 41.52 105
