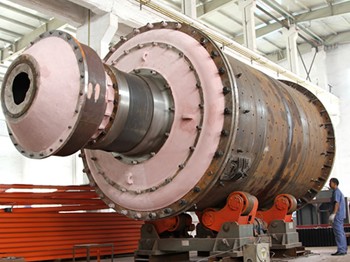

Mineral Rod Mill


The rod mill is named the grinding medium inside the grinding cylinder is steel bar and it can be used in open-circuit grinding system in artificial sand factory, concentrator and chemical plants.
Get Quote Get More Help
Features:
    • Uniform discharging sizes and high yields
    • Energy saving
    • Adjustable material fineness

Features

Introduction Of Mineral Rod Mill

The mineral rod mill is named the grinding medium inside the grinding cylinder is steel bar and it can be used in open-circuit grinding system in artificial sand factory, concentrator and chemical plants.

Mineral rod mill motor is driven by the reducer and periphery gear reduction rotation, or directly driven by low-speed synchronous motor through periphery gear reduction. The cylinder body is equipped with appropriate grinding media - steel bars. Under the role of the centrifugal force and friction, grinding media are lifted to a certain height and be thrown down or drained off. The ground materials are continuously accessed to the interior of cylinder from feeding port to be crushed by the grinding media in rotation and then to be discharged by overflow. The continuous feeding will be conducted for the next operating process.

Three Common Types of Ore Rod Mill

1. Overflow rod mill;

2. Screen-type rod grinder

3. Central peripheral discharge grinding rod mill

Processing Characteristics Of Ore Rod Mill

1. Energy saving

It can save more than 40% of the power compared with the old type of equipment. The product particle size is uniform with less coarse particles and slime. The characteristics of the  particle size in the open circuit grinding almost is the same with that of closed circuit ball mill.

2. Uniform discharging sizes and high yields

It adopts advanced controllable feeding and discharging technology and it is equipped with suitable grinding body according to actual abrasive materials to get more uniform feeding size and higher yields; it is applied to crush the  ores of different hardness (Mohs hardness is between 5.5 to 12).

3. Adjustable material fineness

The particle size of the material can be changed by simple adjustment; the built-in fineness control device and screening device ensure the material fineness.



Parameter

Technical Parameters Of Mineral Rod Mill

Model Shell specifications(mm) Shell rotation speed(r/min) Feeder granularity(mm) Output granularity(mm) Processing capacity(t/h) Power(kw) Weight(kg)
Dia. Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 4600
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 5100
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 12000
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 15600
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 28000
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 34000
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 37000
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 54000
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 86000
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 94000
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 137000

Inquiry

To send inquiries, including feedback, requests for information, or questions, you may use our Feedback and Inquiries form below.

Fields marked by an asterisk (*) are required fields.

Topic: *
Company Name:
Name: *
Tel: *
E-mail: *
Message: *

Contact Us
Product Center
tel TEL: +86-371-67833171
email E-mail: sinohxjq@hxjq.com
yahoo Yahoo:hxjqchina@yahoo.com
msn MSN: hxjq@hxjq.com
  • HOT PRODUCT
  • Mineral Rod Mill
    Mineral Rod MillThe rod mill is named the grinding medium inside the grinding cylinder is steel bar and it can be used in open-circuit g...
  • Magnetic Separator
    Magnetic SeparatorThe magnetic separator is suitable for the magnetic separation of materials such as magnetite, calcined ore, etc.

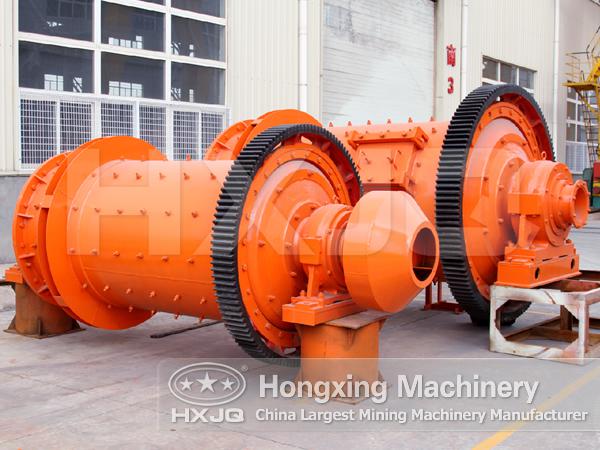

  • Ball Mill
