Indirect Heat Drier

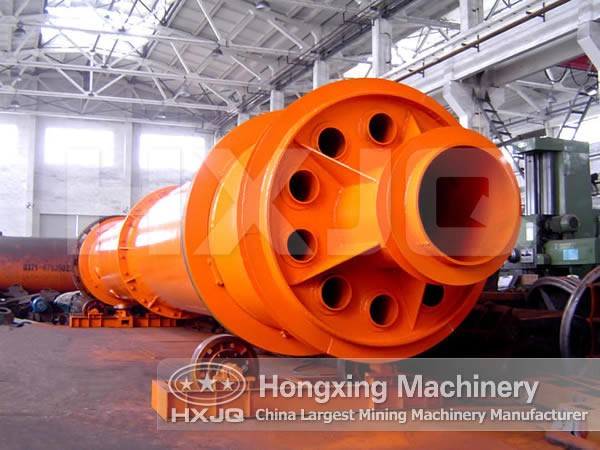

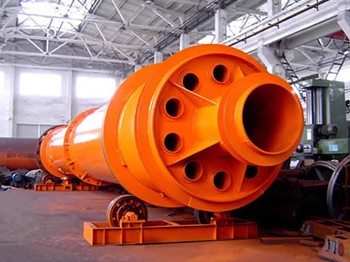

The indirect heat drier is mainly composed of rotary body, lifting blade, transmission device, supporting device, seals and other components. It is widely used to dry slag, limestone, coal powder, slag, clay, etc.
Get Quote Get More Help
Features:
    • Compact structure, reasonable layout, good drying effect
    • Reliable operation, low energy consumption, high thermal efficiency
    • Automation control reduces the operating personnel, saving labor resources

Features

Introduction Of Indirect Heat Drier

The indirect heat drier is mainly composed of rotary body, lifting blade, transmission device, supporting device, seals and other components. It is widely used to dry slag, limestone, coal powder, slag, clay, etc in building materials, metallurgy, chemical industry and cement industry. After being dried, the moisture content of the materials can be achieved to 1-0.5%.

Advantages Of Flour Dryer

(1) Compact structure, reasonable layout, good drying effect;

(2) Small basis investment, which is only half of the same production monocular dryer;

(3) Reliable operation, low energy consumption, high thermal efficiency;

(4) Automation control reduces the operating personnel, saving labor resources.

(5) The outlet temperature is low and the dust removal device has long service life.

Working Principle Of Dryer Drum

First of all, the materials are sent into the inner layer of the rotary drum from the feeding device to get downstream drying, then constantly are picked up and scattered in inner copy board where they move in the spiral travel type and reach heat exchange;

Secondly, the materials move to the other end of the inner layer and enter the middle layer to get countercurrent drying; materials are constantly lifted in the middle layer, fully absorbing the heat of both the inner drum and the middle roller so that the materials achieve optimal dry state.

Then, the materials move to the other end of middle layer and fall into the outer layer and move in a rectangular multi-loop way in the outer drum; after achieving the drying effect, they will be discharged from drum with the hot air; when the wet materials are fully dried in rectangular copy board, the purpose of drying will be achieved.

Parameter

Technical Parameters Of Indirect Heat Drier

Items
Shell diameter×shell length
Inside diameter of outer shell(mm) Inside diameter of inner shell(mm) Shell length(m) Shell length(m3) Shell obliquity Lifting blade form Highest inlet air temperature(℃) Dimensions(m)
Φ1.5×15m
Φ1.5×17m
Φ1.5×19m
1500 500 15
17
19
20.27
22.97
25.68
3-5% Lifting form 850 16.2×2.7×2.7
18.2×2.7×2.7
20.0×2.9×2.9
Φ1.8×21m
Φ1.8×23m
Φ1.8×25m
1800 650 21
23
25
35.91
39.33
42.75
3-5% Lifting form 850 22.5×2.7×2.7
24.5×2.9×2.9
26.5×2.9×2.9
Φ2.2×21m
Φ2.2×23m
Φ2.2×25m
2200 800 21
23
25
58.10
63.61
69.15
3-5% Lifting form 850 ---
