HomeOre dressing machineHigh-efficiency Concentrator

High-efficiency Concentrator


High efficiency concentrator of our company is suitable for the dehydration of concentrate and gangue in the concentrating factory.
Get Quote Get More Help
Features:
    • To speed up the sedimentation velocity
    • Adding flocculant can increase the sedimentation of solid particles size
    • To shorten the sedimentation distance of the mineral particles
    • Promote the flocculation, filtration, compression of mud deposition concentration
    • Equipped with complete auto-control facilities

Features

Introduction Of High-efficiency Concentrator

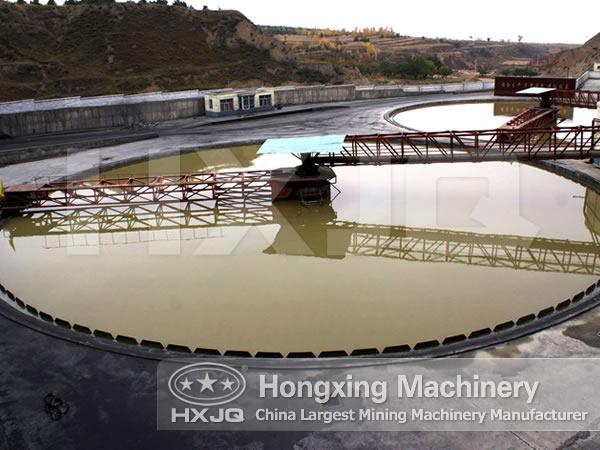

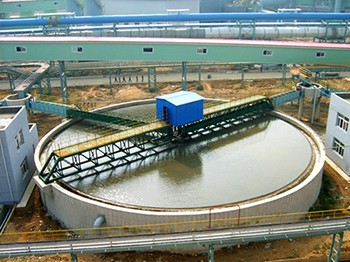

High efficiency concentrator also can be called ore concentrate or pulp thickner, is suitable for the dehydration of concentrate and gangue in the concentrating factory. It is widely used in metallurgy, chemistry, coal, non metal concentration, environment protection etc.

Characteristics Of Ore Concentrate

1, Adding flocculant to increase the size of the setting solid particles, which accelerates the sedimentation rate;
2, Installing inclined plate to shorten the distance of the setting mineral particles, and to increase the subsidence area;
3, Playing a role of flocculating, filtrating, contracting the mud sedimentation thick layer and increasing the handling capacity.

Working Principle Of Pulp Thickner

Increasing the size of solid particle in pulp and subsidence area of concentrator can improve the working capacity of high efficiency concentrator. Adding flocculan to cohere fine materials together can increase the size of solid particles. Installing a hang plate in a common concentrator can increase its subsidence area. After that, decrease the subsidence distance between particles and improve its efficiency. In the same processing capacity, the diameter of high efficiency concentrator is as two thirds or one seconds times long as the common concentrator’s. The floor space that high efficiency concentrator occupies is as one ninths or one fourths times big as the common one’s. But the processing capacity can be improved several or dozes of times.

Parameter

Technical Parameters Of High-efficiency Concentrator

Specification Concentration pond (m) Deposit square(㎡) Harrow part Motor Processing capacity (t/d) Total weight(t)
Model Specification Inner diameter Depth Pond degree Method Height(m) Rotation time(min/r) Driving Lifting
NZS-1 Φ1.8m 1.8 1.8 2.54 Manual 0.16 2 Y90L-6 1.1KW ---- 5.6 1.8
NZS-3 Φ3.6m 3.6 1.8 10.2 Manual 0.35 2.5 Y90L-6 1.1KW ---- 22.4 4.1
NZS-6 Φ6m 6 3 28.3 Manual 0.2 3.7 Y90S-4 1.1KW ---- 62 10.2
NZSF-6 Φ6m 6 3 28.3 Manual ---- 3.7 Y90S-4 1.1KW ---- 62 4.8
NZ-9 Φ9m 9 3 63.6 Auto 0.25 4.34 Y132S-6 3KW XWD0.8-3 0.8KW 140 8.1
NZS-9 Φ9m 9 3 63.6 Manual 0.25 4.34 Y132S-6 3KW ---- 140 7.1
NZS-12 Φ12m 12 3.5 113 Manual 0.25 5.28 Y132S-6 3KW ---- 250 10.5
NZ-15 Φ15m 15 4.4 176 Auto 0.4 10.4 JTC752A-44 5.2KW Y112M-6 2.2KW 350 24.7
NZ-20 Φ20m 20 4.4 314 Auto 0.4 10.4 JTC752A-44 5.2KW Y112M-6 2.2KW 960 27.5
NZ-30 Φ30m 30 7.165 707 ---- 0.61 13.7 Y100L1-4 2.2×2KW YCJ132-S 1.5KW ---- 34.8
NZS-45 Φ45m 45 4.636 1590 Manual ---- 20 JTC672A-44 5.2KW YCJ160-S 2.2KW 515 51.8
NT-15 Φ15m 15 3.5 177 ---- ---- 8.4 Y132M2-6 5.5KW ---- 390 12
NQ-18 Φ18m 18 3.5 255 ---- ---- 10 Y132M2-6 5.5KW ---- 560 11
NQ-24 Φ24m 24 3.4 452 ---- ---- 12.7 Y160M-6 7.5KW ---- 1000 25.3
NG-30 Φ30m 30 3.6 707   ---- 16 Y160M-6 7.5KW ---- 1570 29.4
NJ-38 Φ38m 38 4.9 1134 ---- ---- 10-25 JZT252-4 11KW Y160M-6 7.5KW 1600 60.2
NT-45 Φ45m 45 5.05 1590 Auto ---- 19.3 Y160L-6 11KW ---- 2400 63.6
NTJ-53 Φ53m 53 5.07 2202 ---- ---- 23.18 Y180L-6
15kw
---- 6250 84.8
NT-100 Φ100m 100 5.65 7846 ---- ---- 43 Y180L-6 15KW ---- 3030 204.6
