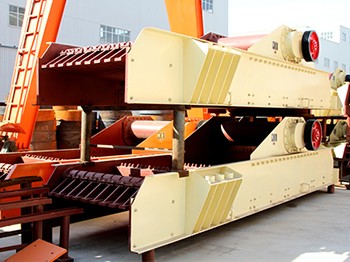

Vibrating Feeder


Vibrating feeder can feed block or granular materials from the material storage to feeding device evenly and continuously.
Get Quote Get More Help
Features:
    • Small volume and compact structure
    • High efficiency and large feeding capacity
    • Low noise and low energy consumption

Features

Introduction Of Vibrating Feeder

Vibrating feeder can feed block or granular materials from the material storage to feeding device evenly and continuously. It can realize even feeding for crushers in sandstone production line and make rough screening for materials. It is widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, mine ion, building material and chemistry.

Characteristics of Vibratory Feeder

1. Small size, light weight, simple and compact structure.

2. Installation, easy maintenance, low operates costs.

3. High efficiency, the ability to feed.

4. Low noise, which helps to improve the working environment.

5. Low power consumption, high power factor.

6. Work in far more than the resonance state, and thus the amplitude stable, reliable operation; it can have the strong adaptability to a variety of materials.

7. To plus Ingredients are required to adjust the eccentric block feeding amount, which can be easily adjusted.

Working Principle Of Feed Grizzly

The feed grizzly runs like this: the eccentric block in the vibrator spins and produces centrifugal force which makes movable parts like the screening box and vibrator move in circles or approximate circles. The vibrating feeder is made up of feeding chute, exciter, spring bearing and transmission device. The vibrating power of the feeding chute comes from the exciter made up of two eccentric shafts (driving and driven shafts) and gear pair. The driving shaft is driven by the motor though the V-belt and then drives the driven shaft to rotate through the gear engagement. Then the two shafts rotate reversely at the same time to vibrate the feeding chute, thus making materials move continuously.

Parameter

Technical Parameters Of Vibrating Feeder

Model Max.feeding size
(mm)
Processing capacity
(t/h)
Motor power
(kw)
Obliquity of material trough
( °)
Total weight
(kg)
Trough size
(mm)
Dimensions (L×W×H)
(mm)
GZD-650×2300 300 80 1.1×2 10 2798 650×2300 2300×1360×780
GZD-750×2500 350 100 1.1×2 10 3260 750×2500 2500×1460×780
GZD-850×3000 400 120 3×2 10 3607 850×3000 3110×1800×1600
GZD-1000×3600 500 150 5.5×2 5 3895 1000×3600 3850×1950×1630
GZD-1100×4200 580 240 5.5×2 5 4170 1100×4200 4400×2050×1660
GZD-1100×4900 580 280 7.5×2 5 4520 4900×1100 5200×2050×1700
GZD-1300×4900 650 450 11×2 5 5200 4900×1300 5200×2350×1750
GZD-1500×5600 1050 450-800 12×2 10 7500 1500×5600 5700×2000×1750
ZSW-380×95 500 100-160 11 0 4823 3800×960 3920×1640×1320
ZSW-490×110 630 150-320 15 0 6647 4900×1100 4980×1830×1320
ZSW-600×130 750 400-600 22 0 9250 6000×1300 6082×2580×2083
ZSW-600×150 800 500-700 30 0 10190 600×1500 6086×2662×1912
ZSW-600×180 800 700-1000 37 0 13750 600×1800 6310×3262×2230
