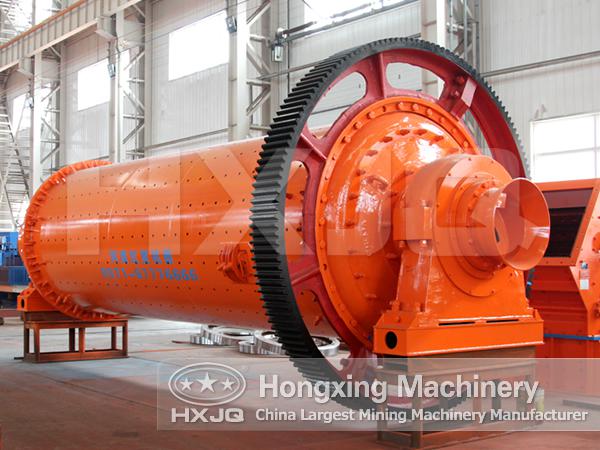

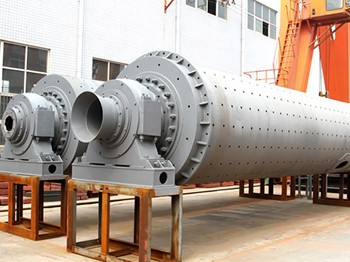

Tube Mill


Superfine ball mill has made innovation based on the traditional grinding mills and and the distribution of the media is much more reasonable.
Get Quote Get More Help

FEATURES

Performance and Characteristics of Tube Mill

Tube Mill

The superfine classifying tube mill is the newly developed milling equipment that combines the technology of super-fine milling and self-distributing fine powder classification and it is featured with the characteristics of energy saving and high efficiency.

1. The special characteristic of the new superfine classifying ball mill is the revolutionary advancement of energy saving and precision of classification, it can save much more than 40% of the energy than that of other mill machine.

2. The fineness can be adjusted from 300-2500 mesh in one time.

3. By adopting self-distributing technology, this machine has the advantages of high precision, correct cutting point and large capacity as high as 100 t/h and lower energy consumption. Under the same capacity, the energy consumption can be reduced by 50% compared with the other equipment.

4. Superfine ball mill has made innovation based on the traditional grinding mills, and the distribution of the media is much more reasonable and the percentage of the yield of the fine products is improved largely.

5. According to the different materials, chosing different lining boards to protect the purity and the whiteness of the final products is important.

For tube mill, we have the strong capability to design and manufacture different kinds of products according to client's individual requirements.

PARAMETER

Model
Shell Specifications (mm)
Shell rotation speed
(r/min)
Feeding size
(mm)
Discharging size
(mm)
Processing capacity
(t/h)
Power
(kw)
Total weight
(kg)
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5500
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6100
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 12000
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 16800
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 29000
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 34800
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 37000
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 54000
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 86000
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 94000
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 137000
