Single Toggle Jaw Crusher


Single toggle jaw crusher can reach the crushing ratio of 4-6 and the shape of finished product is even.
Get Quote Get More Help
Features:
    • Simple structure, easy maintenance
    • Even final particles and high crushing ratio

Features

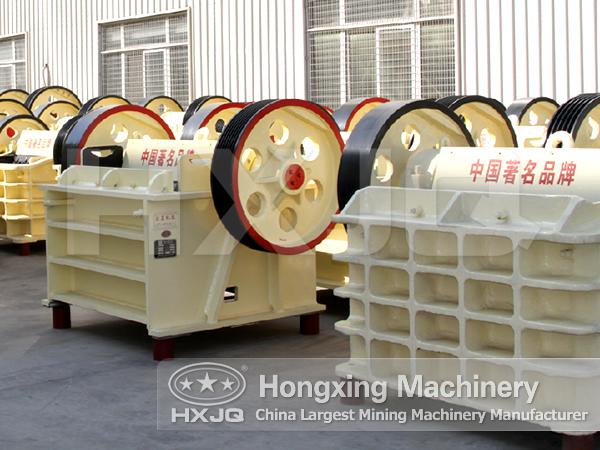

Single Toggle Jaw Crusher

This series of jaw crusher can reach the crushing ratio of 4-6 and the shape of finished product is even. It is widely applied to crush the rocks with high hardness and medium hardness such as slag, construction materials and marble in mining, metallurgy, construction, road and railway building, conversancy and chemistry. The pressure resistance strength is under 200Mpa and it is suitable for primary crushing.

Characteristics Of Stone Jaw Crusher

1. Simple structure, easy maintenance

2. Stable performance

3. Even final particles and high crushing ratio

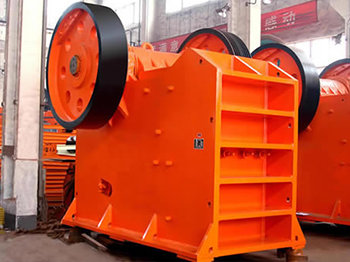

Aggregate Jaw Crusher

Aggregate jaw crusher is a primary crusher that is used for the processing of hard feedstocks such as rock and concrete. It makes it possible to realize the crushing of the rock with the help of a pair of vertical jaws that are lined with replaceable manganese steel plates. One jaw is fixed and the other moves back and forth.

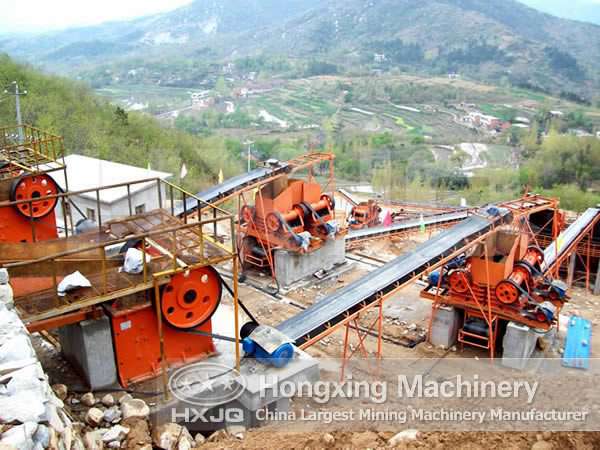

Stone Jaw Crusher

Stone jaw crusher is widely applied in many industries such as mining, metallurgy, construction, highway, railway, water conservancy and chemicals production. Stone jaw crusher is suitable for the primary crushing of material from quarries to reduce its original irregular size to uniform size.

Working Principle Of Single Toggle Jaw Crusher

The strip and strip pulley are driven by a motor, and the moving jaw moves up and down via eccentric shaft. The angle between fixed jaw and moving jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces. It will become bigger when the moving jaw runs up. The moving jaw board leaves the fixed jaw board under the action of pole and spring, and then the end products come out from the crushing cavity. And also, jaw crusher is always used as the primary jaw crusher.

Parameter

Technical Parameters Of Jaw Crusher

Model Feed Opening (mm) Max. feeding size (mm) Adjusting range of discharge opening (mm) Capacity (t/h) Rotation speed of eccentric shaft (r/min) Motor power (kw) Total weight (t) Dimensions (L*W*H)(mm)
PE-150*250
150*250
125
10-40
1-3
250
5.5
0.8
720*660*850
PE-200*300
200*300
180
15-50
2-6
260
7.5
1.2
910*750*990
PE-200*350
200*350
180
18-70
3-10
260
11
1.5
1000*870*990
PE-250*400
250*400
210
20-60
5-20
300
15
2.8
1300*1090*1270
PE-400*600
400*600
340
40-100
16-60
275
30
7
1730*1730*1630
PE-500*750
500*750
425
50-100
40-110
275
55
12
1980*2080*1870
PE-600*750
600*750
500
150-200
80-240
275
55
15.8
2070*2000*1920
PE-600*900II
600*900
500
65-160
50-180
250
55
17
2190*2206*2300
PE-750*1060
750*1060
630
80-140
110-320
250
110
29
2660*2430*2800
PE-800*1060
800*1060
640
130-190
130-330
250
110
29.8
2710*2430*2800
PE-830*1060
830*1060
650
160-220
150-336
250
110
30.7
2740*2430*2800
PE-870*1060
870*1060
660
200-260
190-336
250
110
31.5
2810*2430*2800
PE-900*1060
900*1060
685
230-290
230-390
250
110
33
2870*2420*2940
PE-900*1200
900*1200
750
95-165
220-450
200
110
52
3380*2870*3330
PE-1000*1200
1000*1200
850
195-265
315-500
200
110
55
3480*2876*3330
PE-1200*1500
1200*1500
1020
150-350
400-800
180
160-220
100.9
4200*3300*3500
PE-1500*1800
1500*1800
1200
220-350 500-1000 180 280-335 122
5160*3660*4248
PE-1800*2100
1800*2100
1500
300-400 1300-2200 160 350-380 150.6
6210*4013*4716
PEX-150*750
150*750
120
18-48
8-25
320
15
3.8
1200*1530*1060
PEX-250*750
250*750
210
25-60
13-35
330
30
5.5
1380*1750*1540
PEX-250*1000
250*1000
210
25-60
16-52
330
30
7
1560*1950*1390
PEX-250*1200
250*1200
210
25-60
20-61
330
37
9.7
2140*1660*1500
PEX-300*1300
300*1300
250
20-90
16-105
300
55
15.6
2720*1950*1600
