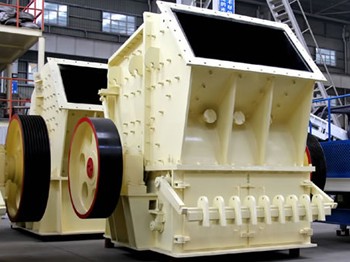

Single-stage Hammer Crusher


Single-stage hammer crusher is used for crushing raw materials whose compression strength is less than 150MPa
Get Quote Get More Help

FEATURES

Brief Introduction to Single-stage Hammer Crusher

Single-stage hammer crusher is one of our leading products used in mining industry. Single-stage hammer crusher is used for crushing raw materials whose compression strength is less than 150MPa such as limestone, marl, sandstone, gypsum, coal, etc. It can crush the ore block at the stone into the granularity required at a time.

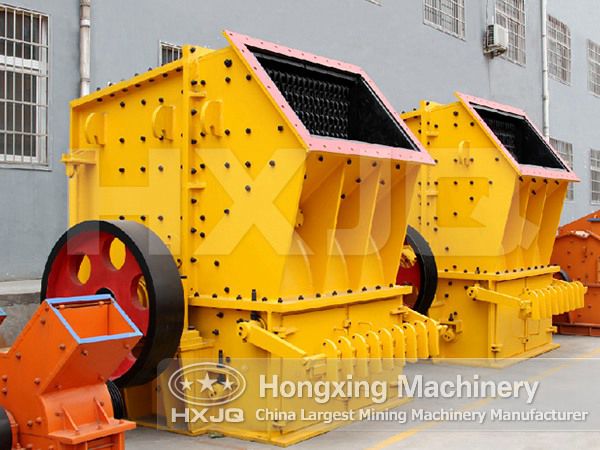

Single-stage Hammer Crusher

Advantages of Single-stage Hammer Crusher

Big crushing ratio: maximum feeding size is 1.3-1.5m; discharging size is 3-150mm.

High fineness of discharging size: favorable shape of the aggregate, the content of powdery material is no more than 20%.

Simple process: the two-or-three stage crushing is reduced to single stage.

Economical: small capacity of matched motor, which greatly reduces the production cost.

Working Principle of Single-stage Hammer Crusher

The motor drives the crusher rotor to rotate quickly in the crushing cavity. Raw materials enter the crusher through the feed opening and are stricken, impacted, cut and ground by the high-speed hammer to small size. There is a screening plate under the rotor, so that materials with size smaller than the screen mesh will be screened out and others are left to be further hammered and ground until they reach the standard size. The size of the final products can be adjusted by changing the grate plate. The gap between the rotors and the grate plate can also be adjusted according to different requirements.

PARAMETER

Technical Parameters of Single-stage Hammer Crusher

Specifications

Feeding Size
(mm)
Discharging Size
(mm)
Capacity
(m3/h)
Motor
Total weight(t)
Dimensions
(L×W×H)(mm)
Power(kw)
PCΦ400×300
≤200
≤25
5-10
11
0.8
900×670×860
PCΦ600×400
≤250
≤30
10-22
22
2.26
1200×1050×1200
PCΦ800×600
≤250
≤35
18-40
55
4.8
1310×1180×1310
PCΦ1000×800
≤350
≤35
25-50
75
5.9
1600×1390×1575
PCΦ1000×1000
≤350
≤35
30-55
90
8
1800×1590×1775
PCΦ1250×1250
≤350
≤35
35-65
132
14
2060×1600×1890
PCΦ1400×1400
≤350
≤35
50-100
280
32
2365×1870×2220
PCΦ1600×1600
≤350
≤35
100-150
480
37.5
3050×2850×2800
