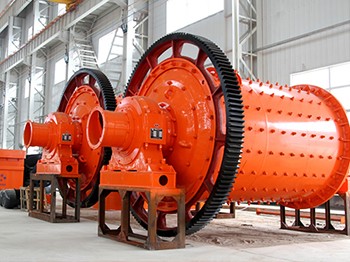

Rod Mill


Rod mill is widely used in various industrial departments and its performance has reached international advanced level.
Get Quote Get More Help

FEATURES

Introduction to Rod Mill

Rod mill also can be called rod grinder,pin crusher or grinding rod mill,have two types dry type rod mill and wet type rod mill. Customers could purchase any of them according to their needs. Fote Machinery uses the advanced technology of controlled feeding and discharging, equip with suitable grinding body according to the actual grinding material, and change the traditional surface contact into line contact so that the discharging size is more even and the yield is higher. Grinding rod mill is widely used in industries which have a high requirement on the uniformity of the finished materials, such as refractory, chemical industry, metallurgy, glass and other industries. Rod mill is also used in sand making industries in recent years.

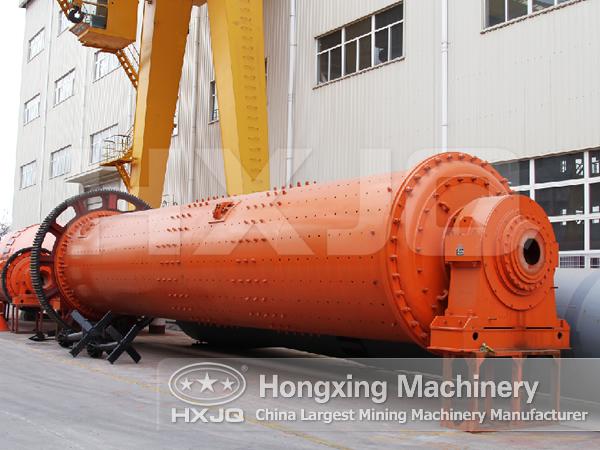

Rod Grinder

Characteristics of Rod Grinder

1. Grinding media can contact with the ore in a line way in the grinding process. Therefore, rod mill can grind materials selectively;
2. The particle size is relatively uniform and there are few over crushed particles.

Working Principle of Rod Mill

The rod mill drives the cylinder in rotation by the engine through the rotation of the reducer and big gears around in deceleration or through low speed synchronous motor driving directly peripheral big gears. The machine is equipped with appropriate grinding medium-steel bar, which is raised to a certain height under the centrifugal force and friction force and then cast down or discharged. The materials to be crushed are continuously added to the cylinder, shattered by the rotating grinding medium and discharged for the next procedure by the overflow and the power produced by continuously feeding in materials.

PARAMETER

Technical Parameters of MBS type Rod Mill

Model
Shell Specifications (mm)
Shell rotation speed
(r/min)
Feeding size
(mm)
Discharging size
(mm)
Processing capacity
(t/h)
Power
(kw)
Total weight
(kg)
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5500
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6100
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 12000
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 16800
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 29000
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 34800
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 37000
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 54000
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 86000
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 94000
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 137000
