Powder Grinding Process Flow


Hongxing mill has low investment and energy consumption, large capacity, reliable operation, technical specifications and other outstanding features.
Get Quote Get More Help

FEATURES

Generally, the powder grinding plant consists of jaw crusher, bucket elevator, electric vibrating feeder, main unit, optional equipment, blower, centrally electric control system, etc. To increase the productivity of the complete grinding plant, you can reach it through choosing suitable powder grinding mills.

Hongxing Machinery offers best powder grinding plants which can be used for grinding limestone, calcite, gypsum, mica, barite, coal, etc. The fineness of finished powder can be adjusted in a wide range which depends on the main grinding mills and your desired fineness.

Hongxing mill has low investment and energy consumption, large capacity, reliable operation, technical specifications and other outstanding features.

Detailed Production Process of Powder Grinding

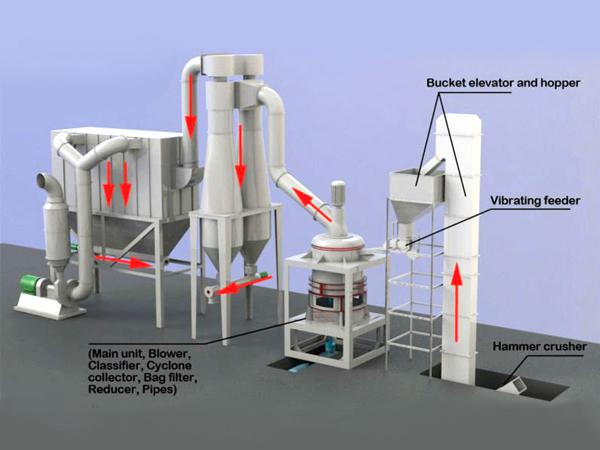

Powder Grinding Process Flow

Large materials are crushed by jaw crusher to the needed sizes firstly, then the materials are elevated to storage hopper by bucket elevator, thirdly, the materials are fed into the grinding chamber for grinding by vibrating feeder evenly and continuously. The powder after grinding goes upwards together with the airflow, after separated by powder separator, the powder which can meet the fineness requirement enters the cyclone powder collector through pipe together with the airflow, and then is discharged from the discharge valve as final products.

PARAMETER

Powder Grinding Process Flows

Type
Parameter
Micropowder93 Micropowder86A Micropowder66
Feeding size(mm) ≤25 ≤20  ≤15
Size of finished product(mm) 0.125-0.010 0.125-0.010  0.125-0.010
Shift output of different material fineness(t) 2-21 0.5-12  0.2-8
Rotate speed of central shart(r/min) 160 160  180
Diameter of pulverizing ring(mm) 1006 907.5  725
Diameter of pulverizing roller(mm) 300 270  210
Height of pulverizing roller(mm) 160 150  150
Main Motor y225m-8-30 y225m-8-22  y225m-8-15
Fan Motor y160E-2-22 y160L-4-15  y160L-4-11
Analyzer motor y112m-4A-3 yc120-4A-3  yc120-4A-3
