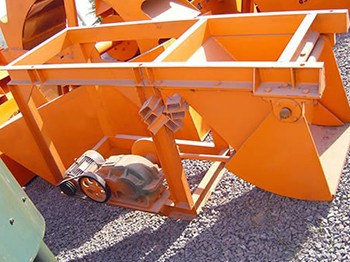

Pendulum Feeder


Pendulum feeder is suitable for concentrating coal chemical industry and other departments and it is used for conveying the materials to various sets of feeding devices.
Get Quote Get More Help

FEATURES

Introduction to Pendulum Feeder

Pendulum feeder is suitable for concentrating coal chemical industry and other departments and it is used for conveying the materials to various sets of feeding devices. The pendulum feeder is not suitable for delivering the dry power or the material of too large particle size or else.

Characteristics of Pendulum Feeder

Pendulum Feeder

Vibration steady, reliable, long life; can adjust centrifugal force; can control the flow and change it at any time. The adjustment is convenient and stable. The vibration motor is vibration source which has the following good characters: low noise, low power consumption, regulating performance, no red material phenomenon. The pendulum feeder produced by our company has many merits: its structure is simple, the operation is reliable, the adjustment and installation are easy, small size, easy maintenance, The closed fuselage structure can effectively prevent dust pollution.

Working Principle of Pendulum Feeder

Motor slows down by the force of the triangle reducer. Then the power is passed to controllable eccentric gear. So the eccentric gear van dive baseboard to swing. Then ore materials will be evenly expelled from the discharge gate though the lumen of feeder. If you want to adjust the feeding capacity of such feeder, you can change the route length. Then you can adjust the feeding capacity is a large range. You can also change the height of the flashboard and the size of discharge gate to adjust the feeding capacity in exact way.

PARAMETER

Techincal Parameters of Pendulum Feeder

Product name
Pendulum feeder
Pendulum feeder
Product size
400×400
600×600
Swing times(time/min-1)
47
45.8
Discharge opening(mm)
Width
400
600
Height
400
600
Swing journey(mm)
0-170
0-220
Max.feeding size(mm)
35
50
Processing capacity(t/h)
0-12
3-25
Motor
Model
Y90S-4
Y100L-4
Power(kw)
1.1
2.2
Total weight(kg)
269
558
