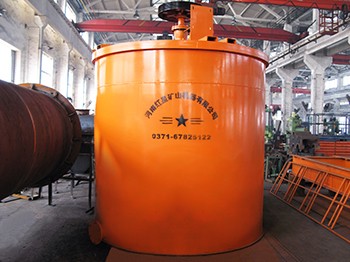

Bucket Mixer


The ore mixer can fully mix the materials and it is featured with easy and simple operation, even materials mixing, high efficiency and short mixing time.
Get Quote Get More Help

FEATURES

Introduction to Bucket Mixer

The ore mixer can fully mix the materials and it is featured with easy and simple operation, even materials mixing, high efficiency and short mixing time.

Mixing bucket is composed of motor, impeller, stator, bearings and other components, with flat-bottomed bucket, radiation cycle, spiral impeller for mixing operation. When the impeller rotation is driven by the motor V-belt drive, drugs and slurry in the bucket will be mixed thoroughly. The machine is the necessary equipment of increasing response time of drug reactions and strengthening the quality of the drug reactions.

Bucket Mixer

Characteristics of Mixing Barrel

1, Compact structure and reliably sealing. Besides, there is an ash damper installed at the mouth of discharging gate, which can prevent water and flog to enter in.
2, Evenly mixing. The shape of propeller is sector. The contacting proportion is large.
3, There are many rows of nozzles, which can guarantee that water can flow evenly.
4, There is less ash left. Besides, there is a watershed set on the bottom. So the whole machine is very clean.

Working Principle of Mixing Vat

Mixing barrel is a necessary set that mix pulp and medicine evenly by the force of rotating impellers drove by motor to increase the reaction time and quality. This type of mineral barrel is suitable to selected mining and various of chemical industries. Mixing barrel is mainly used in all kinds of metal mining industry for mixing materials and medicine before flotation. It is can also be used to mix non-metallic minerals. Mixing barrel is suitable to the materials whose concentration is not more than 30% and whose granularity is less than 1mm. besides, it looks like a flat barrel with helical runners, which can move and mix materials, in it.
Instructions of mixing barrel: fasten the bolts in pump body before use it. Check whether pump shaft generation wheel is flexible or not. Then you can turn on the machine. Others is same to flotation machine.

PARAMETER

Technical Parameters of Agitation Vat

Specification Chute inner dimension Effective cubage
(m³)
Mixer Motor Total weight
(kg)
Diameter
(mm)
Depth
(mm)
Diameter
(mm)
Rotation speed
(r/min)
Model Power
(kw)
XB-750 750 750 0.26 240 530 Y90S-4 1.1 550
XB-1000 1000 1000 0.58 240 530 Y90L-4 1.5 700
XB-1200 1200 1200 1.14 400 320 Y100L2-4 3 980
XB-1500 1500 1500 2.2 400 320 Y100L2-4 3 1330
XB-2000 2000 2000 5.46 550 230 Y132M2-6 5.5 2100
XB-2500 2500 2500 11.2 650 200 Y160L-6 11 3438
XB-3000 3000 3000 19.1 700 210 Y225S-8 18.5 5100
XB-3500 3500 3500 30 850 230 Y225M-8 22 7900
