Magnetic Separator


The magnetic separator is suitable for the magnetic separation of materials such as magnetite, calcined ore, etc.
Get Quote Get More Help

FEATURES

Introduction to Magnetic Separator

Magnetic separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency.

The magnetic separator is suitable for the magnetic separation of materials such as magnetite, calcined ore, etc. The magnetic system is made from high quality ferrite magnetic materials or rare earth magnet steel. On the shell surface, the magnet intensity is 100-600mt. The wet type permanent magnet cylindrical separator is commonly used for iron ore separation. It is suitable for separating materials with high magnetism. In recent years, it has been used as concentrating equipment in place of magnetic dewatering cell.

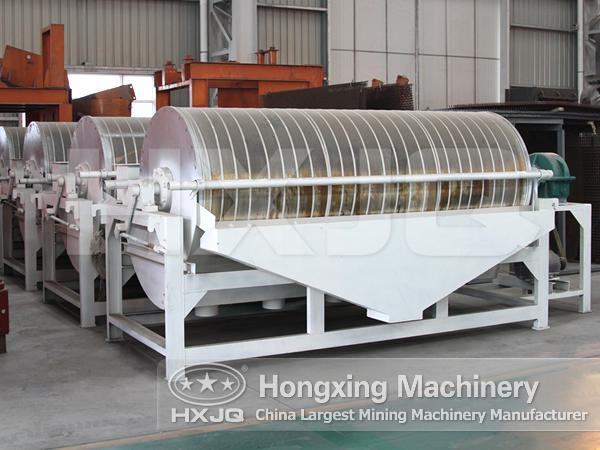

Magnetic Separator

Advantages of Wet Magnetic Separator

1. The strength of magnetic field is large in the surface of tube;
2. Large wrap angle of magnetic system;
3. The strength of magnetic field is stability;
4. The transmission system is stable and reliable;
5. Can significantly improve the grade of ore before it is into the mill.

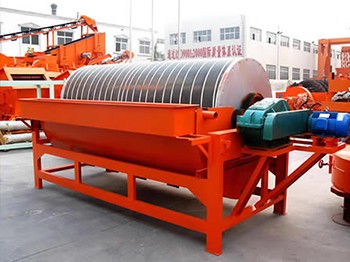

 Magnetic Separator

Maintenance of Magnetic Drum Separator

Like other devices used in processing materials, a magnetic separator must be properly maintained and operated as directed in order to be effective. Maintenance includes clearing the separator to remove magnetic materials it has collected, along with periodically oiling moving parts. In the case of electromagnets, it is also necessary to make sure that emergency shutoffs and other safety features are in operational condition, so that the magnet can be turned off in the event that a problem develops on the production line.

As a famous and professional manufacturer of whole sets of mining machinery in China, as for magnetic separator, Hongxing Machinery produces wet magnetic separator, magnetic drum separator and other types. All of our products are popular and welcomed at home and abroad.

PARAMETER

Technical Parameters of Magnetic Separator Machine

Model Shell diameter
(mm)
Shell length
(mm)
Shell rotation speed
(r/min)
Feeding size
(mm)
Processing capacity
(t/h)
Power
(kw)
CTB6012 600 1200 <35 2-0 10-20 1.5
CTB6018 600 1800 <35 2-0 15-30 2.2
CTB7518 750 1800 <35 2-0 20-45 2.2
CTB9018 900 1800 <35 3-0 40-60 3
CTB9021 900 2100 <35 3-0 45-60 3
CTB9024 900 2400 <28 3-0 45-70 4
CTB1018 1050 1800 <20 3-0 50-75 5.5
CTB1021 1050 2100 <20 3-0 50-100 5.5
CTB1024 1050 2400 <20 3-0 60-120 5.5
CTB1218 1200 1800 <18 3-0 80-140 5.5
CTB1224 1200 2400 <18 3-0 85-180 7.5
CTB1230 1200 3000 <18 3-0 100-180 7.5
CTB1530 1500 3000 <14 3-0 170-280 11
