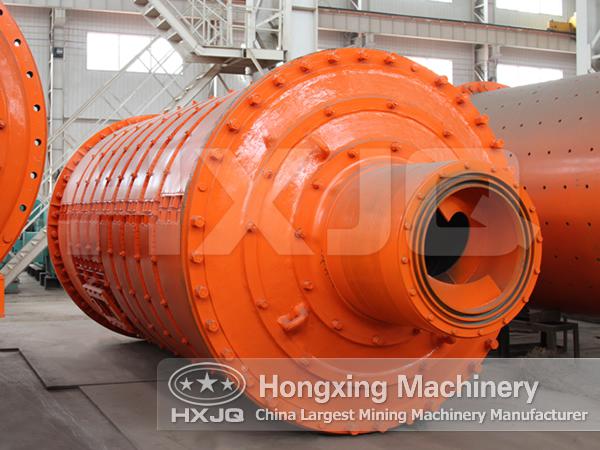

MBS Type Rod Mill


A rod mill is an ore grinding mechanism that uses a number of loose steel rods within a rotating drum to provide its attrition or grinding action.
Get Quote Get More Help

FEATURES

Introduction to MBS Type Rod Mill

A rod mill is an ore grinding mechanism that uses a number of loose steel rods within a rotating drum to provide its attrition or grinding action. Rod mill has dry and wet two types to choose from and user could choose it based on the specific need. Hongxing Machinery uses advanced output controllable technology to change the traditional surface contact into line contact, making the output granularity more even and realizing high productivity. It is widely used in chemistry, metallurgy, glass industry and sand making industry in recent years.

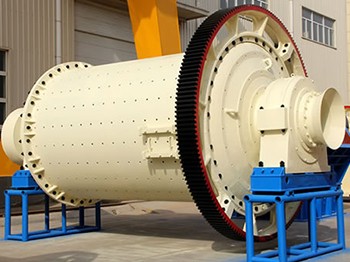

Rod Mill

The rod mill is generally more efficient than the ball mill due to its more effective cascading action and the greater bearing surface offered by the rods. This means it can operate at lower speeds and with less grinding agents and producing less undesirable slimes byproduct. Rod mills do, however, require more attention during operation to prevent rod tangles and are generally ineffective at dry milling operations. They are also limited to a maximum rod length of approximately 20 feet (6 meters) which means they are generally smaller than ball mills. Rod mills also exhibit more liner and lifter wear than other mill types due to the comparatively high weights of the rods.

PARAMETER

Technical Parameters of MBS Type Rod Mill

Model Shell specifications(mm) Shell rotation speed(r/min) Feeder granularity(mm) Output granularity(mm) Processing capacity(t/h) Power(kw) Weight(kg)
Dia. Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 4600
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 5100
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 12000
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 15600
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 28000
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 34000
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 37000
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 54000
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 86000
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 94000
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 137000
