Linear Vibrating Screen


A linear vibrating screen is a classifying screen which divides the mixed materials with different grain size into a number of different levels of granularity through single or multi-layer screen surface.
Get Quote Get More Help

FEATURES

Introduction to Linear Vibrating Screen

The linear vibrating screen features stabilization, low consumption, little noise, long service life, stable vibration mode and high screening efficiency. It adopts the vibrating motor exciter as the vibrating source and throws materials on the screen and makes them move forward in rectilinear motion. Materials evenly enter the feed port of the screen from the feeding machine, and they are divided into several types with different specifications as oversize products and screen underflows, and then get discharged from the discharging port. It’s suitable for assembly line work because of its low consumption, high yield, simple structure, easy maintenance, totally closed structure, no dust overflow and automatic discharging.

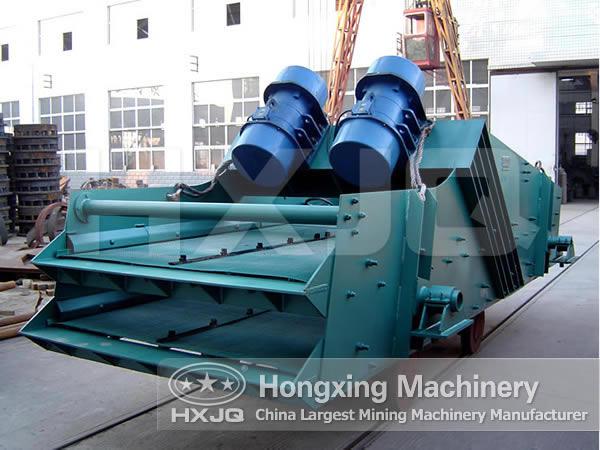

Linear Vibrating Screen



Features of Linear Vibrating Screen

1. High vibrating force with unique eccentric structure. The adopt advanced structure makes the vibrating force powerful;

2. The beam and case of the screen are connected with high strength bolts without welding;

3. Simple structure, easy to repair;

4. Adopting tire coupling and soft connection ensures operation smooth;

5. High efficiency, easy maintenance and sturdy and durable use.

Working Principle of Linear Vibrating Screen

Linear vibrating screen adopts dual motor drive. When the motors do synchronous and reverse rotation, the exciting forces generated by eccentric block cancel each other out on the parallel direction of motor axis, and stack together with the direction that perpendicular to the motor axis, so its trajectory is a straight line. There is a dip on the two motor's relative screen surface, materials are tossed by leaps and bounds forward for linear motion under the exciting force and the self-gravity of the materials so as to achieve the purpose of screening and grading.

PARAMETER

Technical Parameters of Linear Vibrating Screen

Model Sieve specification(L×W)

Sieve layer

Mesh size

Feeding size

Processing capacity Motor power

Total weight Vibrating frequency Double amplitude Sieve obliquity

Dimensions (L×W×H)
(mm) (mm) (mm) (t/h) (kw) (kg) (Hz) (mm) (℃) (mm)
ZSG1237 3700×1200 1 4-50 ≤200 10-100 5.5×2 2250 16 6-8 15 3800×2050×1920
2ZSG1237 3700×1200 2 4-50 ≤200 10-100 5.5×2 3345 16 6-8 15 3800×2050×2200
ZSG1443 4300×1400 1 4-50 ≤200 10-150 5.5×2 4100 16 6-8 15 4500×3040×2500
2ZSG1443 4300×1400 2 4-50 ≤200 10-150 5.5×2 4900 16 6-8 15 4500×3040×2700
3ZSG1443 4300×1400 3 4-50 ≤200 10-150 5.5×2 5870 16 6-8 15 4500×3040×2820
2ZSG1548 4800×1500 2 5-50 ≤200 15-200 7.5×2 5836 16 8-10 15 4800×3140×2814
3ZSG1548 4800×1500 3 5-50 ≤200 15-200 7.5×2 6900 16 8-10 15 4799×3140×3014
2ZSG1848 4800×1800 2 5-50 ≤300 50-500 7.5×2 6489 16 8-10 15 4799×3440×2814
3ZSG1848 4800×1800 3 5-50 ≤300 50-500 7.5×2 7750 16 8-10 15 4799×3440×3014
4ZSG1848 4800×1800 4 5-50 ≤200 50-500 11×2 8300 16 8-10 15 4799×3440×3503
2ZSG1860 6000×1800 2 5-150 ≤300 80-600 11×2 9950 16 8-10 15 6000×3440×3326
