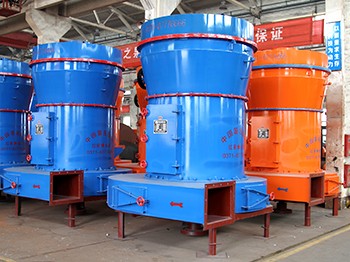

High Strength Pulverizer


The machine is used for grinding the barite, limestone, kaolin, cerames, ahd slags and other non-inflammable and non-explosive materials whose Mohs hardness is below 9.3 in the industry.
Get Quote Get More Help

FEATURES

Introduction to High Strength Pulverizer

The machine is used for grinding barite, limestone, kaolin, cerames, ahd slags and other non-inflammable and non-explosive  materials whose Mohs hardness is below 9.3 in the industries of mining, metallurgy, chemistry and building material for high fine powder generation and processing. The product size is adjustable in the range of 80-425 (1000 the finest) meshes. It is possible to produce 30-80 mesh coarse powder through special device in the machine.

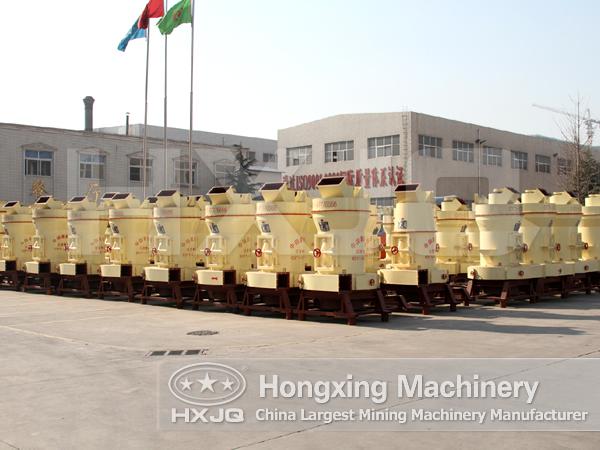

High Strength Pulverizer

Working Principle of High Strength Pulverizer

In the main frame, a 100-1500 kg pressure spring is fixed to the roller suspender. After the grinder is put into effect, the roller rotates around the main shaft, and rolls closely against the ring  that is pressed by the high pressure spring and centrifugal force. And its rolling pressure ration is 1.2 times higher than that of the Raymond grinder under the same power condition and the production output is raised to substantial degree.

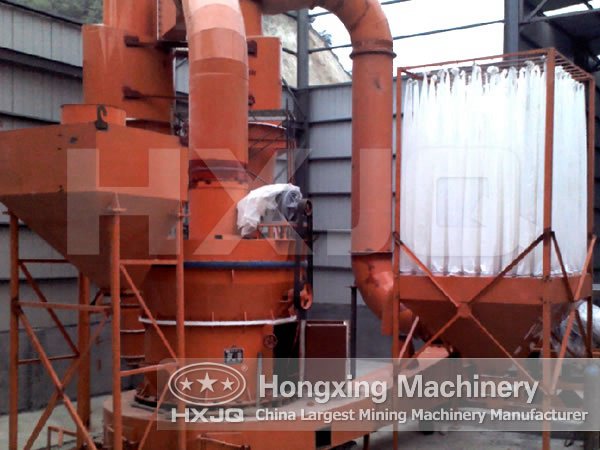

High Strength Pulverizer

When a certain degree of wear and tear of roller and ring is caused, it is recommended to adjust the length of the spring to maintain the constant pressure between the roller and the ring. As a result, the stable output and fineness are ensured.

PARAMETER

Technical Parameters of High Strength Pulverizer

Model High-strength97 High-strength93 High-strength92 High-strength87 High-strength76 High-strength66 High-strength62
Feeding Size(mm) ≤25 ≤25 ≤25 ≤25 ≤20 ≤15 ≤15
Output Size(mm) 0.125-0.033 0.125-0.033 0.125-0.033 0.125-0.033 0.125-0.033 0.125-0.044 0.125-0.044
Shift Output of Different Material Fineness(t) 4-52 3.5-40 3-36 2.8-33 1.5-25 1-20 0.6-9
Rotation Speed of Central Shaft(r/min) 130 140 148 161 170 190 274
Ring Diameter(mm) 1050 1006 973 907.5 850 725 525
Roller Diameter(mm) 310 300 300 270 260 210 150
Roller Height(mm) 170 160 160 150 150 150 100
Main Motor Y225S-4-37 Y225M-8-30 Y225M-8-30 Y225M-8-22 Y225S-8-18.5 Y200L-8-15 Y160M-6-7.5
Fan Motor Y200L-4-37 Y180M-2-22 Y180L-4-22 Y180M-4-18.5 Y160L-4-15 Y160M-4-11 Y132S-4-5.5
Analyzer Motor YCT200-4A-5.5 Y112M-6-3 Y112M-6-2.2 Y112M-6-2.2 Y112M-6-2.2 Y112M-6-2.2 Y90L-6-1.1
