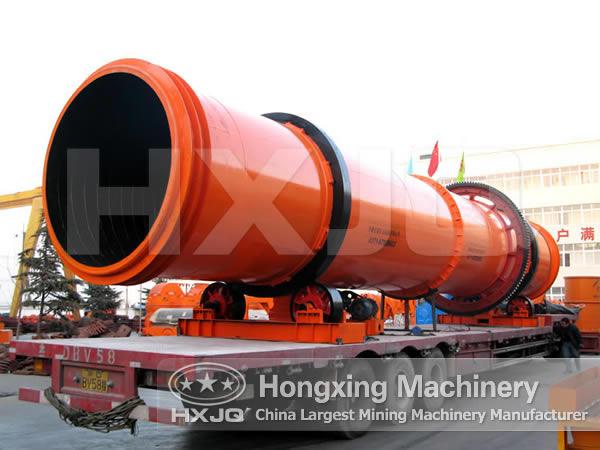

Cement Dryer


Dryer machine is suitable for drying a wide variety of products, ranging from granular, powdery and crystalline materials to filter cakes and sludge in food, chemistry and mineral industry.
Get Quote Get More Help
Features:
    • Small footprint, easy construction and maintenance
    • Intensive dry strength and short time
    • Large handling capacity and high thermal efficiency

Features

Dryer machine is suitable for drying a wide variety of products, ranging from granular, powdery and crystalline materials to filter cakes and sludge in food, chemistry and mineral industry.

Application Fields

Dryer machine is widely used in the field of building material, metallurgy, chemistry, cement and so on. It can dry slag, coal powder, mining powder, clay, sand, limestone and so on. It is composed of rotary body, lifting blade, driving device, supporting device etc. The dryer has advantages of reasonable structure, high efficiency, low energy consumption and so on.

China Dryer Machine

Types Of China Dryer Machine

Rotary dryer (rotary dryers), limestone dryer, China dryer (China dryers), cement rotating dryer, drum dryer

Cement Rotating Dryer

Cement rotary dryer is suitable to dry metallic and nonmetallic minerals, clay in cement industry and coal in coal mine, etc. Characteristics of cement rotary dryer include high drying capacity, smooth rotation, low energy consumption and easy operation.

Working Principle Of Dryer Machine

The heat source of the dryer comes from the burning device by way of air current. Thus, the materials should be added from the feeding box and go to the cylinder through the feeding gutter. Since the dryer is put obliquely, some materials flow to the trailing end under the gravity and rotary force, while other materials are raised to the top by the shoveling plate over and over again and then they are scattered to form an even curtain. Because of the continuous exchange of heat, the water in the materials will be dried to achieve the effect.

Parameter

Technical Parameters Of Dryer Machine

Prouduct specifications(m) Production capacity(t/h) Main motor Main gear box Total weight
Power(kw) Model Model speed ratio
Φ1.2×10m 2.5 7.5 Y160M-R3 ZL50-16-I ---- 13.5
Φ1.5×12m 3.3-4.9 10 Y160L-B3 JZQ500-III-2F ---- 18.9
Φ1.5×15m 4-6 18.5 Y200L1-6 JZQ500-III-2F ---- 21
Φ1.8×12m 4-6 18.5 Y160L-6 ZQ50-16II-2 16.46 23
Φ2.2×12m 7-12 18.5 Y200L7-6 JZQ650-III 31.5 38
Φ2.2×14m 7-12 22 Y200L7-6 JZQ650-III 31.5 40
Φ2.2×16m 12 30 Y225M-6 JZQ750-III 31.5 45
Φ2.4×14m 12 30 Y250M-6 JZQ750-III 31.5 51
Φ2.4×18m 10-13 37 Y250M-6 ZL85-13-I 27.16 54
Φ2.4×20m 10-14 37 Y250N-6 ZL8513-I 27.16 55
Φ3×20m 25 55 Y250M-4 ZL100-16-I 41.52 78
Φ3×25m 32-36 75 YR280M-4 ZL100-16-I 41.52 105
