Disk Grain Making Machine


The disk grain making machine is a kind of grain making machine that is used for processing mixed materials whose nutrient content is 10-30%.
Get Quote Get More Help

FEATURES

Introduction to Disk Grain Making Machine

The disk grain making machine is a kind of grain making machine that is used for processing mixed materials whose nutrient content is 10-30%.

Disk grain making machine is widely used in gold concentrator, coal mine, chemical plant, construction and foundry for grain making. The advantages of this machine are simple structure, easy-to-adjust and excellent performance.

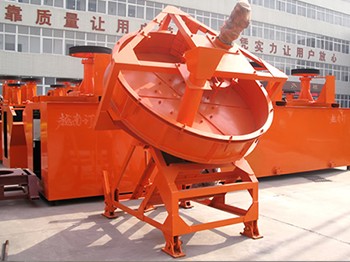

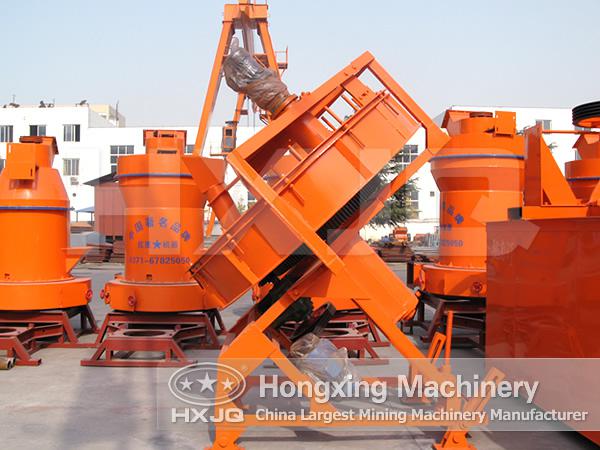

Disk Grain Making Machine

Characteristics of Disk Granulator

1. Disk granulator’s structure is new and suitable. Its weight is light. Its height is low. Its process layout is flexible. And it is suitable to reformation of old factory.
2. The tilt of market is adjustable. Disk grain making machine uses angle of gasket, which makes it convenient to adjust.
3. Disk granulator adopts unpowered composite scraper, which can help it decrease power consumption.


Working Principle of Disk Grain Making Machine

All kinds of dry materials enter into the disk grain making machine from the roof of it, and then are transported to rabbet after degassing and compressing. Then the two rollers rotate towards opposite directions with a same speed, and press the materials. Materials enter into grain making machine naturally because of gravity and tension. After that, the materials will be transported to vibrating screen to be separated. At last, the qualified products will be transported to finished product warehouse or be parked directly. The unqualified materials will come back to feeder machine and be re-crushed. You can adjust the hydraulic system to adjust the pressing force according to the size and strength of the materials. Besides, adjusting the shape of roller surface slot can get different shapes of materials such as, sheet, strip, olive-shaped, flat globular.

PARAMETER

Technical Parameters of Disk Grain Making Machine

Specification
(m)
Rotation speed
(r/min)
Production capacity
(t/h)
Motor
(kw)
Adjustment range of obliquity
Dimensions
(m)
Total weight
(kg)
Φ2.2
14.25
4-8
7.5
35-55
2.8×2.75×2.58
2850
Φ2.5
11.81
5-10
7.5
35-55
3.2×2.3×3
3250
Φ2.8
11.21
12-16
7.5
35-55
3.4×2.6×3.1
3710
Φ3.0
11.3
15-18
11
35-55
3.7×2.7×3.3
4350
Φ3.2
9.6
15-20
11
35-55
3.9×2.7×3.4
5110
Φ3.6
9.1
18-24
15
35-55
4.3×3.1×4.0
6510
