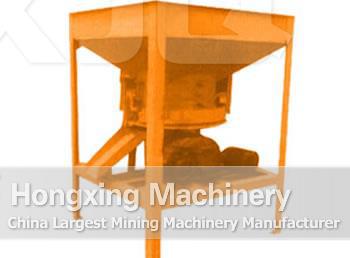

Disk Feeder


Disk feeder is feeding equipment that is calculated by cubage and can conduct the feeding for next procedure evenly and continuously.
Get Quote Get More Help

FEATURES

Introduction to Disk Feeder

Disk feeder is feeding equipment that is calculated by cubage. It can conduct the feeding for next procedure evenly and continuously. It is suitable for the feeding of various non-viscous materials, but not suitable for the powdery material with high flowing property. It is suitable for feeding the ore, coal, cement, limestone, clutch etc.

Working Principle of Disk Feeder

Feed port of the disk feeder includes the receiving sleeve and adjusting sleeve. Materials fall down from the receiving sleeve to the adjusting sleeve, and then scatter from the gap of disk board and the adjusting sleeve. You can adjust the gap and the location of scraper blade to meet your need. The way to adjust the height of the adjusting sleeve is move up and down threaded rod fixed besides of the adjusting sleeve.

PARAMETER

Technical Parameters of Disk Feeder

Specification KR1000 KR1500 KR2000 BR1000 BR1500 BR2000
Disk diameter(mm) 1000 1500 2000 1000 1500 2000
Disk rotation speed(r/min) 7.5 7.5 7.5 6.3 6.3 4.79
Max.feeding size(mm) <50 <50 <50 <50 <50 <50
Feeding capacity(m³/h) 14 25 100 13 30 80
Power(kw) 2.2 5.5 11 3 7.5 11
Weight(kg) 740 1280 1754 1400 2705 5234
