Concentrator Table


Concentrator table is a kind of mine selecting machine for fine materials under the gravity.
Get Quote Get More Help
Features:
    • High enrichment ratio, good selection effect, easy operation
    • Low energy consumption, competitive price

Features

Introduction Of Concentrator Table

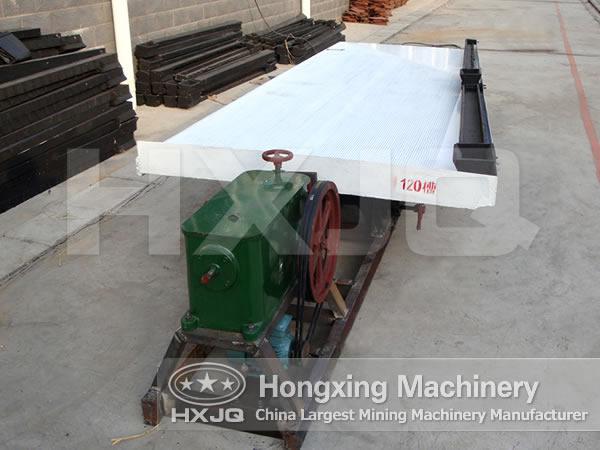

Concentrator table is a kind of mine selecting machine for fine materials under the gravity. Concentrator table also can be called jerking table,shaking table or ore concentrator,is widely used for the selection of tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal. Our company has long history of concentrator table production and insists on constant innovation. We provide a variety of concentrator tables with high processing capacity, high recovery rate and high enrichment ratio.

Features Of Jerking Table

Hongxing 6-S type jerking table combines the national concentrator table and weight concentrating technology, and its advantages are high concentration ratio, high concentration efficiency, easily operated, and once gets the final concentrate and gangue. It is different from the traditional one in non-medicine, energy saving, easy operation and high price performance ratio. Hongxing shaking concentrator is welcomed and marketed at home and abroad at reasonable and favorable concentrator table price.

Structure Of Shaking Table

Head Motion: The head motion is made of rugged construction and it requires minimum maintenance. Its internal mechanism is splash lubricated from an integral oil sump.

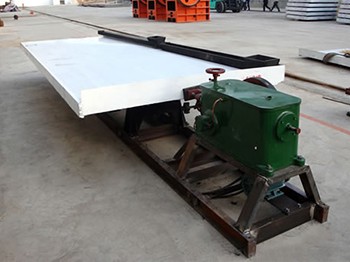

Decks: The decks are built of 16 mm zircon-reinforced fiberglass with fabricated steel frames at the bottom, which are easy to clean and requires little maintenance. The specific gravity of fiberglass that is made into decks is one third of that of steel, while its strength reaches as high as 70% that of steel. This fiberglass desks also has the characteristics of water-resistance and corrosion-resistance and it can hold the shape unchangeable at ±50℃.

Feed and Water Box: A wooden feed distributing box with hopper and a long water box are attached to the iron of the deck, giving a very even distribution of feed and water.

Base: A choice of ordinary type, groove steel support or big channel steel support is available.

Working Principle Of Ore Concentrator

The crankshaft rocker moves up and down as shaking table’s belt rotating drove by motor. When the crankshaft rocker moves downward, materials will come in from tilt table though bunker. The water channel of shaking table supplies water to the materials. Like this, while the table is vibrating, the water is flowing. Different density materials will flow to concentrate mouth and tails mouth along with different direction. Mining shaking table has improved much after generations.

Parameter

Technical Parameters Of Concentrator Table

Name
Unit
Grit concentrator table
Fine sand concentrator table
Sludge concentrator table
Dimensions
Length
MM
4450
4450
4450
Driving part width
MM
1855
1855
1855
Concentrate part width
MM
1546
1546
1546
Max.feeding size
MM
2
0.5
0.15
Feeding amount
T/d
30-60
10-20
15-25
Feeding thickness
%
25-30
20-25
15-25
Journey
MM
16-22
11-16
8-16
Frequency
F
15-48
48-53
50-57
Water quantity
T/d
80-150
30-60
10-17
Horizontal obliquity
Degree
2.5-4.5
1.5-3.5
1-2
Portrait obliquity
%
1.4
0.92
----
Table board corner
Degree
32-42
40
42
Concentrating square
----
7.6
7.6
7.6
Table board length ratio
----
2.6
2.6
2.6
Motor power
KW
1.1
1.1
1.1
