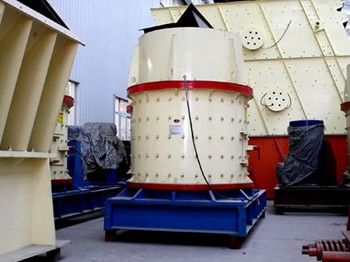

Combination Crusher


Combination crusher, which can also be called compound crusher, is one of the commonly used machines in crushing production line and sand making production line.
Get Quote Get More Help
Features:
    • It can be used for fine crushing and coarse grinding function
    • Making use of stone-beat- stone principle with small abrasion
    • Impeller has small self-lining wear and it is easy to conduct maintenance
    • Suitable for crushing hard  materials

Features

Introduction to Combination Crusher

The compound crusher can crush large materials, and the discharging granularity can be adjusted at will without the influence of the abrasion of the board hammer and lining plate. It adopts the no-grizzly-bar structure to avoid blocking, which is suitable to crush materials with much moisture and silt content. The elastic adjustment structure will help discharge materials that can’t be crushed, thus avoid damaging the equipment. The long life bearing is arranged horizontally to crush high temperature materials like cement clinker. The rotor of the compound crusher has special structure which won’t be worn once crushed; the screw rod or the hydraulic pressure opener is installed in the back cavity and it’s easy to change quick-wear part.

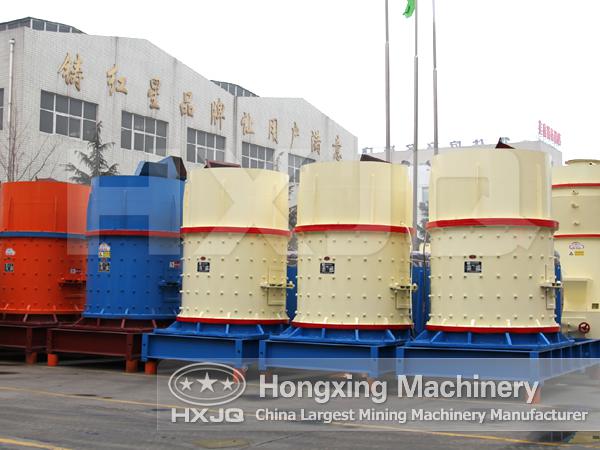

Combination Crusher

Features of Compound Crusher

1. Little influence of the abrading of board hammer or the scaleboard.

2. No setting of grates.

3. Able to crush the materials with high contents of water and mud.

4. Elastic adjusting structure. The uncrushed materials can be discharged automatically, which does no harm to the machine.

5. Long operating life. The bearings arranged flatly can prolong the life of the machine.

6. Unique structure, steady performance, low noise.

7. Easy to repair.

Working Flow of Combination Crusher

Raw materials are fed from the top of the combination crusher, and fall into the rotating impeller at a high speed to be crushed. As other materials simultaneously fall around the rotating impeller, the two kinds of materials join together and are crushed by each other. The materials are crushed many times in the impeller of the combination crusher, and are finally discharged from beneath the machine.

Working Principle of Compound Crusher

Materials fall into the high speed spinning impeller from the top of the machine, and get crashed and crushed at high speed with the other materials spreading around the impeller in an umbrella shape under the high speed centrifugal action. After materials hit each other, they get further crashing, grinding and crushing in eddy current between the impeller and the chassis. Then they are discharged from the bottom barrel, forming multiple closed circuit recycling process. The finished product particle size is controlled by the screening machine.

Parameter

Technical Parameters of Combination Crusher

Model
800
1000
1250
1500
1750
Rotor diameter (mm)
650
800
1000
1250
1560
Cylinder height(mm)
800
850
850
1000
1410
Main shaft rotation speed (r/min)
1350
970
740
650
600
Feeding size(mm)
50
70
100
100
100
Discharging size (mm)
0-5
0-5
0-5
0-5
0-5
Processing capacity (t/h)
5-15
10-30
20-60
30-80
40-100
Motor
Power(kw)
30
55
75
110
132
Rotation speed
1440
1440
750
750
750
Dimensions(L×W×H)(mm)
2200×860×1980
2700×1160×2000
2800×1400×2730
3100×1900×2300
3350×2100×2800
Total weight (t)
2.3
4.5
9.73
18.1
26.61
