Circular Vibrating Screen

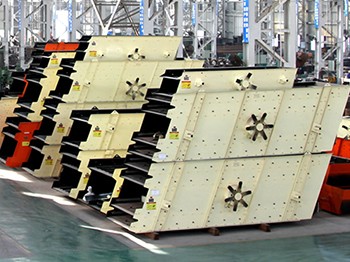

The circular vibrating screen or round vibrating screen does circular movement in work, and it is a new high efficiency vibrating screen machine with multiple layers.
Get Quote Get More Help
Features:
    • Simple structure; it is easy to replace the screen;
    • High screening efficiency, low energy consumption;
    • High wear resistance, low noise

Features

Introduction Of Circular Vibrating Screen

The circular vibrating screen or round vibrating screen does circular movement in work, and it is a new high efficiency vibrating screen machine with multiple layers. It adopts drum eccentric shaft exciter and eccentric block to adjust the amplitude. The circular vibrating screen is widely used for product grading in the industries of mining, building material, transportation, energy and chemical industry because of its features such as long screening line, various specifications, reliable structure, high efficiency, little noise, firmness, easy maintenance and safe operation.

Technical Superiority Of Round Vibrating Screen

  • 1. It uses eccentric block to produce strong exciting force.
  • 2. It adopts the structure of small amplitude, high frequency, large obliquity to achieve high efficiency, large handling capacity, long life span, low consumption, little noise.
  • 3. Electricity power consumption is less.
  • 4. Simple structure and easy to disassemble and replace;
  • 5. Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance.
  • 6. Flexible connection and stable operation.

Working Principle Of Circular Vibrating Screen

The eccentric block of the exciter is driven by the motor through the V-belt to spin at high speed. The spinning eccentric block produces large centrifugal force which forces the screen box to do circular motion at certain amplitude. Materials on the inclined screen receive the impulse from the screen box and make continuous throwing movement. When materials meet the screen surface during the above movement, those particles with smaller size than the screen mesh will pass through the screen, thus finishing the classification process.

Parameter

Technical Parameters Of Circular Vibrating Screen

Model Sieve layer Sieve area (m2) Mesh size (mm) Max feeding size (mm) Capacity (m3/h) Vibrating Power (r/min) Duble amplitude (mm) Motor power (kw) Sieve obliquity (o) Sieve spec. (mm) Total weight (kg)
Dimensions (L*W*H)(mm)
2YK1225
2
6
4-50
400
8-60
800-970
8
5.5
20
1200*2500
3500
2930*1860*870
3YK1225
3
9
4-50
400
10-70
800-970
8
5.5
20
1200*2500
3850
3070*1860*1210
2YK1230
2
7.2
4-50
400
12-78
800-970
8
7.5
20
1200*3000
4200
3430*1860*870
3YK1230
3
10.8
4-50
400
13-80
800-970
8
7.5
20
1200*3700
4600
3570*1860*1210
2YK1237
2
8.88
4-50
400
15-86
800-970
8
7.5
20
1200*3700
4600
4050*1860*870
3YK1237 3 13.22 4-50 400 16-90 800-970 8 7.5 20 1500*3500 5200 4270*1860*1210
2YK1535 2 10.5 5-50 400 20-125 800-970 8 11 20 1500*3500 5890 4120*2210*1230
3YK1535
3
15.75
5-50
400
21-125
800-970
8
11
20
1500*3500
6700
4360*2210*1610
2YK1545
2
13.5
5-50
400
22-150
800-970
8
15
20
1500*4500
6330
5120*2210*1230
3YK1545
3
20.25
5-50
400
22-150
800-970
8
15
20
1500*4500
6800
5360*2210*1610
4YK1545 4 27 5-50 400 22-155 800-970 8 18.5 20 1500*4500 7800 5930*2210*2060
2YK1548
2
14.4
5-50
400
22.5-162
800-970
8
15
20
1500*4800
6980
5420*2210*1230
3YK1548
3
21.6
5-50
400
22.5-162
800-970
11
15
20
1500*4800
7700
5660*2210*1610
4YK1548
4
28.8 5-50 400 22.5-162 800-970 8 18.5 20 1500*4800 8700 6230*2210*2060
2YK1848
2
17.28
5-80
400
25-206
750
8
15
20
1800*4800
9080
5420*2550*1420
3YK1848
3
25.92
5-80
400
32-276
750
8
18.5
20
1800*4800
9600
5660*2550*1780
4YK1854
4 34.54 5-80 400 32-285 750 8 22 20 1800*4800 11100
6290*2550*2160
2YK1854
2
19.44
5-80
400
32-312
800-970
8
18.5
20
1800*5400
10150
5960*2500*1420
3YK1854
3
29.16
5-80
400
32-312
800-970
8
22
20
1800*5400
10840
6260*2550*1780
4YK1854
4 38.88 5-80 400 32-336 800-970 8 30 20 1800*5400 12840
6830*2550*2160
2YK2160
2
25.2
5-100
400
50-475
970
8
30
20
2100*2600
11780
6720*2840*1530
3YK2160 3 37.8 5-100 400
50-475
970 8 30 20 2100*2600 12800 7030*2840*1910
4YK2160
4
50.4
5-100
400
50-497
970
8
37
20
2100*2600
14800
7300*2840*2380
2YK2460
2
28.8
5-100
400
65-550
970
8
37
20
2400*6000
15600
7020*3140*1530
3YK2460
3
43.2
5-100
400
70-620
970
8
37
20
2400*6000
17600
7300*3140*1910
4YK2460
4 57.6 5-100 400 80-680 970 8 45 20 2400*6000 19600 7600*3140*2380
