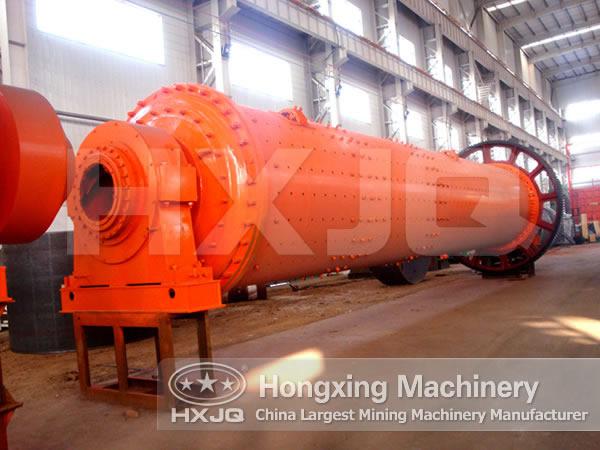

Chinaware Ball Mill


Chinaware ball mill is a set of ball mill that made up of chinaware. Its capacity is very small. So it is generally used in test room for small scale production.
Get Quote Get More Help

FEATURES

Introduction toChinaware Ball Mill

Chinaware ball mill is a set of ball mill that made up of chinaware. Its capacity is very small. So it is generally used in test room for small scale production. It is a new type energy saving ball mill which is designed by domestic mining machinery specialists with latest milling technology.

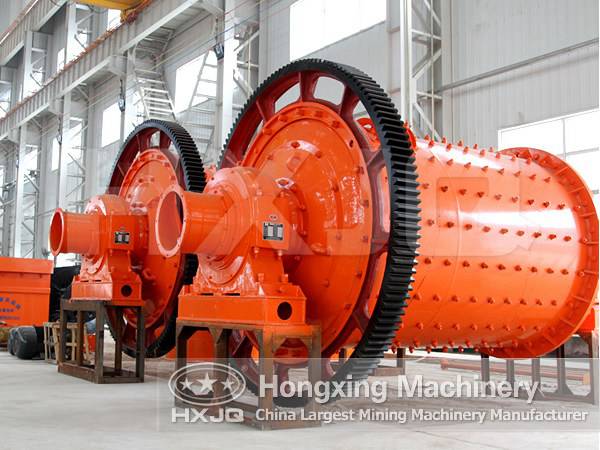

Chinaware Ball Mill

Working Principle of Chinaware Ball Mill

Motor drivers cylinder rotating through reducer device.  Ores and balls in the cylinder are brought at a certain height, and then fall down, when the cylinder rotates. Ores are crushed by the force of friction and centrifugal pull during this processing. The ores after crushing are discharged out of the cylinder. Then the ores are separated by spiral classifier. The unacceptable products come back to the cylinder and are crushed again. Ores enter evenly into ball mill though joint feeder. And the crushed ores are discharged from ball mill continuously. Chinaware ball mill can work continuously day after day with out rest.

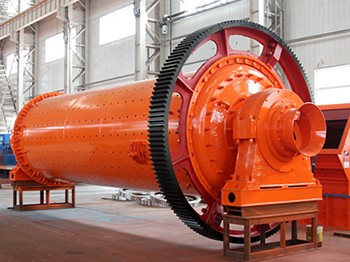

Chinaware Ball Mill

PARAMETER

Technical Parameters of Chinaware Ball Mill

Model Feeding capacity
(t/time)
Shell rotation speed
(r/min)
Reference motor
(kw)
Liner material
600×700 0.05 50 2.2 Chinaware,silicon,rubber or metal(the related motor power varied as per the different liner materials and grinding materials)
800×600 0.075 42 3
900×1200 0.2 38.5 5.5
1300×1500 0.5 33 7.5
1500×1800 1.2 28.5 11
1800×2000 1.5 24 15
2600×2800 5 16.5 37
3000×3800 10 14.5 57.2
3200×4600 15 13.5 75
