HomeOre dressing machineChina Vibrating Feeder

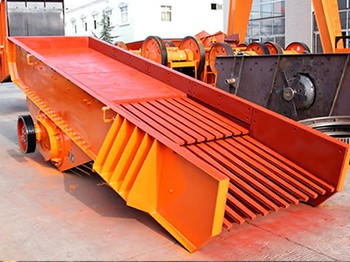

China Vibrating Feeder


Vibrating feeder is a kind of linear direction feeding machine with the features of smooth vibration, reliable operation and long service life.
Get Quote Get More Help
Features:
    • High efficiency and large feeding capacity
    • Small volume and compact structure
    • Low noise and low energy consumption

Features

In the sand and stone production line, vibratory feeder can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly. Vibrating feeder is also named vibratory feeder, vibrating grizzly feeder, feed grizzly, ore vibrating feeder. Vibrating feeder is a kind of linear direction feeding machine with the features of smooth vibration, reliable operation and long service life. It is widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants.

China Vibrating Feeder

Vibrating feeder works continously and evenly. The particles and powdery materials from hopper will be sent to the screens and crushing machines by belt conveyer or bucket elevator. Stepless regulation is available for vibrating feeder to automatically and centrally control the feeding volume.

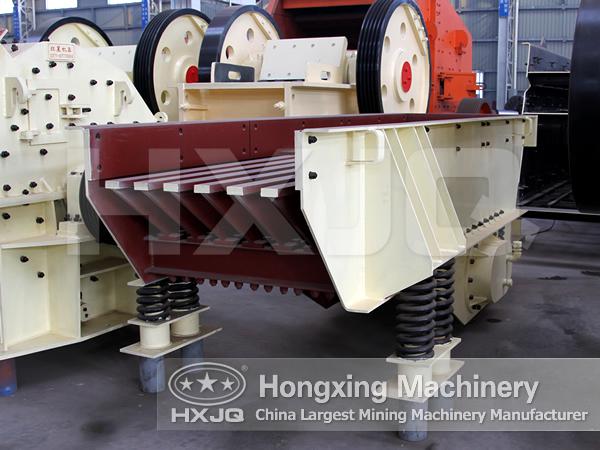

Ore Vibrating Feeder

Ore vibrating feeder is mainly used for continuous and even feeding of coarse particles and screening of fine aggregate, thus enhancing crushing capacity. When it is in operation, the ore vibrating feeder can send massive and granular materials to the receiving device evenly, regularly and continuously. In the sand making production line, its even and continuous feeding helps to avoid feeding-hole blocking. It can also roughly screen the materials.

Special Advantages of China Vibrating Feeder

China feeder series have two types: vibrating feeder and linear feeder. Vibrating feeder has two engines. Users can adjust vibrating frequency of feeder freely so as to completely control feeding speed of stone materials to ensure smooth operation of the production line.

Working Principle of Ore Vibrating Feeder

The ore vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through vibration, the materials will slip and sling on the funnel, moving forward, and when the materials pass the screening part, smaller parts will fall down, thus avoiding the further crushing, and therefore, screening purpose can be reached.

Parameter

Model Max.feeding size
(mm)
Processing capacity
(t/h)
Motor power
(kw)
Obliquity of material trough
( °)
Total weight
(kg)
Trough size
(mm)
Dimensions (L×W×H)
(mm)
GZD-650×2300 300 80 1.1×2 10 2798 650×2300 2300×1360×780
GZD-750×2500 350 100 1.1×2 10 3260 750×2500 2500×1460×780
GZD-850×3000 400 120 3×2 10 3607 850×3000 3110×1800×1600
GZD-1000×3600 500 150 5.5×2 5 3895 1000×3600 3850×1950×1630
GZD-1100×4200 580 240 5.5×2 5 4170 1100×4200 4400×2050×1660
GZD-1100×4900 580 280 7.5×2 5 4520 4900×1100 5200×2050×1700
GZD-1300×4900 650 450 11×2 5 5200 4900×1300 5200×2350×1750
GZD-1500×5600 1050 450-800 12×2 10 7500 1500×5600 5700×2000×1750
ZSW-380×95 500 100-160 11 0 4823 3800×960 3920×1640×1320
ZSW-490×110 630 150-320 15 0 6647 4900×1100 4980×1830×1320
ZSW-600×130 750 400-600 22 0 9250 6000×1300 6082×2580×2083
ZSW-600×150 800 500-700 30 0 10190 600×1500 6086×2662×1912
ZSW-600×180 800 700-1000 37 0 13750 600×1800 6310×3262×2230
