China Magnetic Separator


Magnetic drum separator is the magnetic separation equipment in heavy industrial applications such as tramp iron removal, slag treatment, ore cobbing and scrap fragmentizing.
Get Quote Get More Help

FEATURES

Magnetic separator can separate raw materials with different magnetism. The machine works under magnetic force and mechanical force. Magnetic separators are designed to recover ferromagnetic materials. The separators are available to provide solutions for all applications. The heart of each separator is the magnetic system with unique design, which has a proven record of high efficiency. The magnetic separators are available in cyclic design with process vessel diameters from 220 mm to 3,050 mm.

Types of magnetic separator: wet magnetic separator, magnetic drum separator, China magnetic separator.

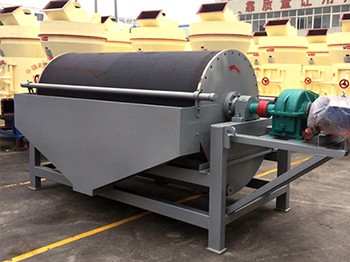

China Magnetic Separator

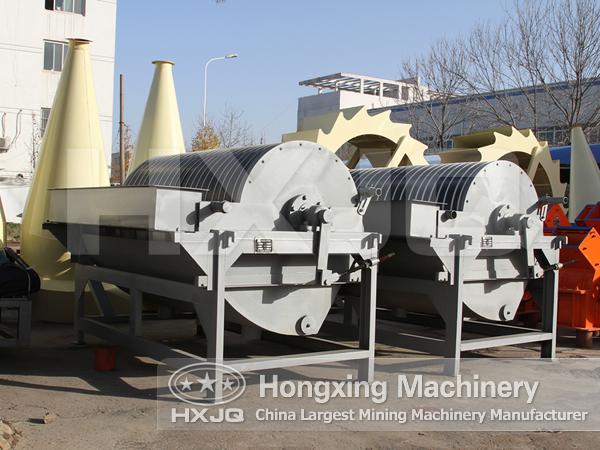

China Magnetic Separator

Magnetic separator is also called magnetic ore separator or magnetic cobber. Henan Hongxing Mining Machinery Co., Ltd. is one of the largest magnetic separator manufacturers in China. We will provide you with the best magnetic equipment.

Working Principle of Magnetic Separator

After the pulp enters the tub through the feeding box, mineral grains enter into feeding area of tub at a state of un-consolidation under the action of the water flow of feeding sprinkler pipe. Under the action of the magnetic field, the magnetic mineral grains get together and 'magnetic group' or 'magnetic chain' comes into being. 'Magnetic group' or 'magnetic chain' moves to magnetic poles and is adsorbed in the cylinder under the influence of magnetic in the pulp. The polarity of the cylinder poles arranges alternately along the direction of rotation and it is changeless when working. When 'magnetic group' or 'magnetic chain' rotates with the cylinder, matrix and other non-magnetic minerals which are mingled in the 'magnetic group' or 'magnetic chain' fall out in the flipping because of magnetic phenomenon, and they are eventually suck on the cylinder surface of the 'magnetic group' or 'magnetic Ephraim'.

PARAMETER

Technical Parameters of  Magnetic Separator

Model Shell diameter
(mm)
Shell length
(mm)
Shell rotation speed
(r/min)
Feeding size
(mm)
Processing capacity
(t/h)
Power
(kw)
CTB6012 600 1200 <35 2-0 10-20 1.5
CTB6018 600 1800 <35 2-0 15-30 2.2
CTB7518 750 1800 <35 2-0 20-45 2.2
CTB9018 900 1800 <35 3-0 40-60 3
CTB9021 900 2100 <35 3-0 45-60 3
CTB9024 900 2400 <28 3-0 45-70 4
CTB1018 1050 1800 <20 3-0 50-75 5.5
CTB1021 1050 2100 <20 3-0 50-100 5.5
CTB1024 1050 2400 <20 3-0 60-120 5.5
CTB1218 1200 1800 <18 3-0 80-140 5.5
CTB1224 1200 2400 <18 3-0 85-180 7.5
CTB1230 1200 3000 <18 3-0 100-180 7.5
CTB1530 1500 3000 <14 3-0 170-280 11
