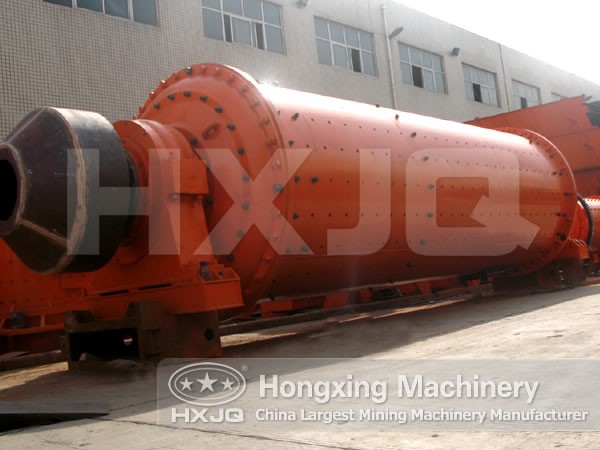

Ball Mill


Ball mills are widely used in cement, silicate products, 52555 new building materials, refractory materials, fertilizer, ferrous and non-ferrous metals and glass ceramics and other production industries.
Get Quote Get More Help
Features:
    • Big feeding port, strong handling capacity
    • Simple structure
    • Stable operation, short maintenance time
    • Adopting new-type bearings reduces the energy consumption

Features

Introduction Of Ball Mill

Ball mill is a key equipment to re-crush primary crushed materials. Ball mills are widely used in cement, silicate products, 52555 new building materials, refractory materials, fertilizer, ferrous and non-ferrous metals and glass ceramics and other production industries. Ball mill grinder can dry or wet grind various grindable ores and other materials. Ball mill machine can be used to grind various ores and other materials, and is widely used in mineral processing, building materials and chemical industry. Ball mills include two types: dry grinding ball and wet grinding ball.. Besides, ball mill grinders can also be divided into tabular type and flowing type, according to different discharging ways.

Type Of Ball Mills

Energy-saving ball mill, cone ball mill, cement ball mill, batch ball mill, rod ball mill, grid ball mill, overflow type ball mill, tube ball mill, dry-type ball mill, wet ball mill, intermittence ball mill.

Features of Ball Grinding Mill

1. Large application range, simple structure and convenient maintenance;

2. Large capacity and continuous operation;

3. Barrel lining and grinding media can apply various abrasive materials;

4. Installation and adjustment are very convenient and easy to be operated. Related: dry grid ball mill wet ball mill

Selection Of Suitable Type Of Grinding Ball

1. Know the hardness of your own ore.

2. Choose the energy-saving ball mill to the great extent.

3. Know the required ore fineness.

4. Choose the right diameter and length of the ball mill according to the output requirement.

5. Buy it from the professional ball mills manufacturer.

6. The manufacturer should hold the market share in the place where your enterprise located.

7. Choose the new-type transformation ball mill with the different rotate speed from the module.

8. Choose the aperture of the close board and the sub-freignt space according to the ore fineness of your demand.

9. Choose the lining board material and set the thickness of the steel plate on the mill body based on the price of the ball mills.

10. Slect the modules of the big gear and pinion, and the manufacturers of the electric motor and the speed reducer.

Industrial Grinding Machines Supplier-Hongxing Machinery

Henan Hongxing Mining Machinery Co., Ltd. is a large-sized industrial grinding machines manufacturer, and our ball mill has many advantages such as simple and reasonable structure, high independent impact crushing ability, super low operational cost and the most competitive price. Welcome all new and old customers come to our company for inspection and purchase.

Working Principle Of Ball Mill

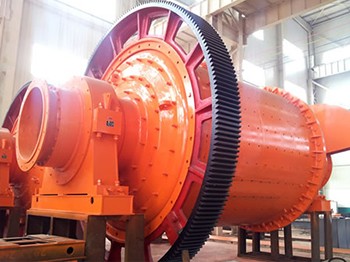

This machine is a horizontal type cylinder rotary device and outside the cylinder there is drive gear which drives the cylinder to rotate during the working process. Materials spirally and evenly go into the first cabin of the grinding machine through the feeding hollow shaft from the feeding device, and inside the first cabin, there are ladder lining boards or ripple lining board in which there are many steel balls with different specifications. The cylinder rotates and produces eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact and grind the materials. After being coarsely ground in the first cabin, the materials will go through the single-layer partition board and into the secondary cabin in which there are flat lining board, and in the lining board there are steel balls to further grind the materials. Finally the powdery materials will be discharged from the discharging grating bar to complete the powder grinding process.

Parameter

Technical Parameters Of Ball Mill

Model Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800 36-38 1.5 ≤20 0.075-0.89 0.65-2 18.5 5.5
Ф900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 6.7
Ф1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 12
Ф1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 12.8
Ф1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 13.8
Ф1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 16.8
Ф1500×4500 27 11 ≤25 0.074-0.4 3-6 110 21
Ф1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130 29
Ф1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 35.5
Ф1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 34.8
Ф2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 42
Ф2100×7000 23.7 26 ≤25 0.074-0.4 8-48 280 56.6
Ф2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 51.8
Ф2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 60
Ф2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 62
Ф2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 ≤25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 69
Ф2700×4000 20.7 40 ≤25 0.074-0.4 12-80 380 94
Ф2700×4500 20.7 48 ≤25 0.074-0.4 12-90 480 102
Ф3200×4500 18 65 ≤25 0.074-0.4 As per process conditions 630 137
Ф3600×4500 17 90 ≤25 0.074-0.4 As per process conditions 850 158
Ф3600×6000 17 110 ≤25 0.074-0.4 As per process conditions 1250 175
Ф3600×8500 18 131 ≤25 0.074-0.4 45.8-256 1800 252
Ф4000×5000 16.9 121 ≤25 0.074-0.4 45-208 1500 203
Ф4000×6000 16.9 146 ≤25 0.074-0.4 65-248 1600 218
Ф4000×6700 16.9 149 ≤25 0.074-0.4 45-252 1800 238
Ф4500×6400 15.6 172 ≤25 0.074-0.4 54-306 2000 280
Ф5030×6400 14.4 216 ≤25 0.074-0.4 68-386 2500 320
Ф5030×8300 14.4 266 ≤25 0.074-0.4 88-500 3300 403
Ф5500×8500 13.8 338 ≤25 0.074-0.4 108-615 4500 525
