The Role of Vibrating Screen in Gravel Production Line

Author: HXJQTime: 4/4/2013 5:47:22 PM

 No matter stone production line or sand making production line, they are inseparable from the shaker. The role of vibrating screen is not difficult to understand. It makes use of vibration sieve to sieve materials. When the materials are broken by crusher,then they are screened by vibrating screen. For the materials that do not meet the requirements, when they are screened out, they are sent back to crusher for further crushing, until get the desired particle size. The vibration sieve has strong exciting force, simple structure, convenient maintenance; flexible connection and smooth transportation, high screening efficiency, large capacity, long life, low power consumption, noise. It is widely used in screening classification in gravel production line, gravel plants, stones and other materials.

vibrating screen0405

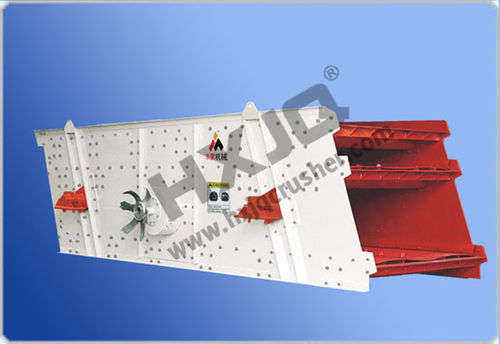

     Vibrating screen is also called circular vibrating sieve machine, which is composed of screen box, screen mesh, vibrator, damping spring device, chassis and other components. It adopts cylinder eccentric shaft vibration exciter and partial block to adjust the amplitude of the vibrator, the vibrator is mounted on the side panel of the screen box, and it is rotated by the motor through the V-belt to produce centrifugal force, and forcing the vibration of screen box.
The side panel of the screen machine is made of high quality steel, side panels and beams, shaker base is made of high strength bolts or ring groove rivet connection. The vibrator is mounted on the side plate of the sieve box,which is driven by a motor via a coupling, a centrifugal inertial force, forcing the sieve vibration.
     The vibrating screen adopts eccentric as excitation force, strong exciting force; sieve, beams and screen box use high strength bolts to join together, no welding; sieve machine is characterized by simple structure, convenient maintenance; tire coupling, flexible connection and smooth operation;high screening efficiency, large capacity, long life.
