How to Choose Vibration Motor of Vibrating Machine

Author: HXJQTime: 3/25/2013 5:55:06 PM

 The emergence of vibration motor has simplified the structure of vibrating machinery such as the vibrating screen and vibrating feeder. The use of a variety of vibration forms have generated many new vibrating machinery. What is the main point is that it simplifies the design methods and design process of the vibration machinery, which is also the reason that the vibration machinery which uses the vibrating motor to generate the shock force is increasingly widely used in many industries. What is the vibration motor? What is the working principle?

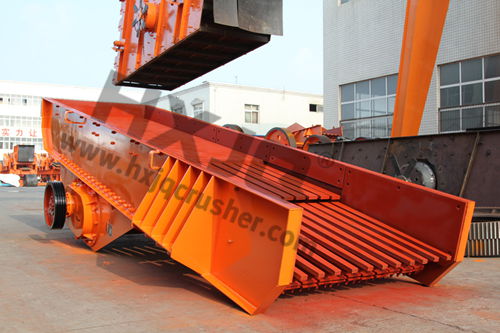

vibrating feeder

The vibration motor is to install a set of adjustable eccentric blocks at both ends of the rotor shaft to get the excitation force by making use of the centrifugal force generated by the high-speed rotation of the shaft and the eccentric block. This special design of the motor and the combination of eccentric block and the motor make the excitation force pass to the vibrating machinery through the motor when the motor rotates. As for the vibration motor, it only needs to adjust the outer eccentric block to form a certain angle with inner eccentric block so that the operators can infinitely adjust the excitation force. In the vibrating body of the vibration motor , it can produce different vibration locus in accordance with different installation forms, thereby effectively completing the various operations.

vibrating screen

The vibration motor is characterized by the following features: 1. The excitation power and power match with each other appropriately, large excitation force, small size; 2 because the vibration motor is strongly hindered vibration rather than resonance, the amplitude is stable; 3 using smooth rotary vibration to generate the vibration and the noise is low; 4 wide the vibration frequency range, the frequency of vibration of the vibration motor can be adjusted by adjusting the speed, vibration frequency and amplitude are adjustable in accordance with the different usages; 5 the service life is long.
