Features of the Ultrafine Grinding Mill

Author: HXJQTime: 3/13/2013 7:56:12 PM

 Features of the ultrafine grinding mill

1.Use the most high-end production of materials,
2.thin oil lubrication
3.High degree of utilization of wearing parts
4.chock-piece with cast steel structure
5.Stable performance
6.Limited analysis technology, higher strength
7.High safety and reliability
8.Mechanical structure is simple, compact and lightweight

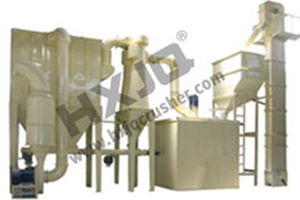

ultrafine grinding millproduct

Applications of S ultrafine grinding mill:
     The grinder is widely used in cement, calcite, phosphate rock, gypsum, graphite, glass, manganese, titanium, copper, chrome ore, refractory materials, insulation materials, coal tar, coal dust, carbon black, clay, bone meal,titanium dioxide, iron oxide, quartz with Mohs hardness not more than 7, and humidity is below 6% of non-flammable and explosive mining, construction, chemical, fertilizer and other industries of over 300 kinds of materials for high fine powder processing.
1.The product size has a wide range of particle size, and the most fine can be up to 3500 mesh.
2.Good Dust effects.
3. The ultrafine mill analysis adjustment is very convenient.
4. Sealing performance of the polishing apparatus is relatively good.

Features of S ultrafine grinding mill:

1.In the case of the same finished product with the same fineness and motor power, it is higher 40% yield than the jet mill and mixing mill.
2.The high degree of utilization of wearing parts in the case of the same materials and the finished product fineness than impact crusher and turbine crusher wear parts and long service life, generally up to a year or more.
3.High safety and reliability. The grinding cavity has no rolling bearings, no screws, so there is no problem of bearing seal wearing, there is no screw loose and destroyed the machine.
4.The product fineness fineness disposably get to d97 ≤ 5μm.
5.The use of environmental pulse dust collector and muffler reduce dust pollution and noise, and to achieve the national environmental standards, no pollution to the surrounding environment.
Technical parameters of Superfine Powder Mill

Model

SCM6015

SCM8021

SCM10027

The ring roller quantity

15

21

27

Working diameter(mm)

Φ600

Φ800

Φ1000

The number of grinding ring and raceway(个)

1×3

1×3

1×3

Host speed(r/min)

235

235

173

The max feeding size(mm)

<=10

<=10

<=20

The product size(mesh)

325-2500

325-2500

325-2500

Yield(kg/h)

325-2500

600-4000

900-6000

Dimensions(m)

10×2.3×5.5

13×3×5.8

18×4×8.6
