Detailed Information on Double Teeth Roll Crusher

Author: HXJQTime: 3/11/2013 6:11:33 PM

  With the continuous development of the scale of China's coal, mining, construction and other industries, the occurrence of roll crusher types is constantly growing, and the models constantly enrich the situation. Because all industries have higher requirement for product quality of the crusher, which put forward higher requirements for crusher technology, especially for the newer roll crusher. Now a variety of multi-functional automatic crusher enter many enterprises, it is necessary to make further study on the domestic application situation and development of the roller machine.

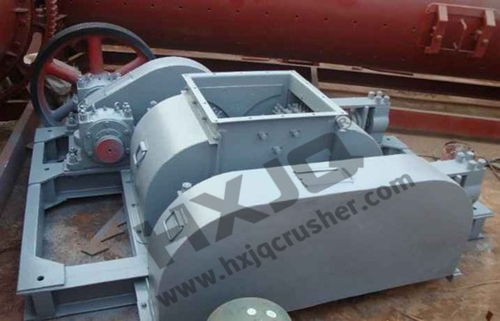

double-teeth-roll-crusher
 structure



     Double teeth roll crusher is suitable for the fine crushing and coarse crushing of medium hard and soft materials with compressive strength less than 240Mpa, humidity less than 35%, such as coal, coke, petroleum coke, lime silica. Carbon. Glass tube. asphalt. chemical raw materials, or the same as the above hardness solid materials. The machine is characterized by special low use and maintenance costs. reliable and less dust, and low noise.
Working principle:
     Double teeth roll crusher uses two wear-resistant alloy teeth roll to generate relative rotation of the high extrusion pressure and shear force to break materials. Materials enter the two teeth roller gap (V crushing chamber), which received the extrusion pressure and shear force generated by two Roll relative rotation. Under the squeeze, rolling, shearing, then the materials with the needed granularity are discharged from the discharge port.
sand -production-line
     Double Roll Crusher has two grinding roller, and the rolling surface is divided into wolf teeth, ring gear straight teeth, large plate teeth, etc., which is suitable for feeding particle size less than 1000mm, refined grain size is 10-200mm. It is used in thermal power plants, coking plant to crush coal; the coal mines to break chunks of raw coal: iron and steel industry fragmentation coke; crushing petroleum coke, coal chemical industry; electronics industry fragmentation silica: carbon industry to break carbon block: solar industry to break waste glass tube: concrete industry to break quicklime and asphalt.
